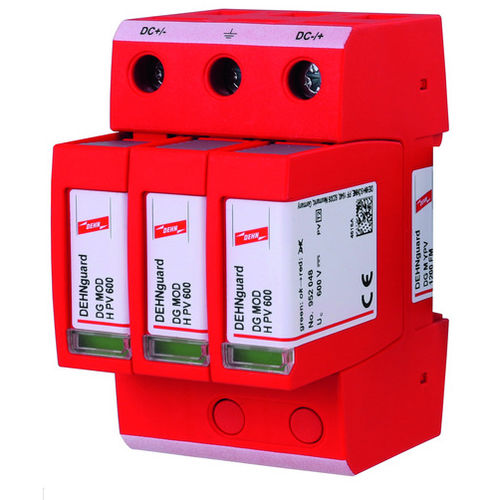

type 2 surge arrester / modular / DIN rail / plug-in
DG M YPV 1500 FM

{{requestButtons}}

Characteristics

  • Type:

    type 2

  • Other characteristics:

    modular, DIN rail, plug-in, thermoplastic

  • Applications:

    for photovoltaïc installations

  • Current:

    15,000 A

  • Voltage:

    1,500 V

Description

Modular prewired complete unit for photovoltaic systems consisting of a base part and plug-in protection modules
Fault-resistant Y circuit with three high-capacity varistors prevents damage to the surge protective device in case of insulation faults in the generator circuit
Tested to EN 50539-11
High monitoring safety due to "Thermo Dynamic Control" disconnecting device
Fault indication by red indicator flag in the inspection window
Suitable for use in accordance with IEC 60364-7-712 "Electrical installations of buildings - Solar voltaic (PV) power supply systems
