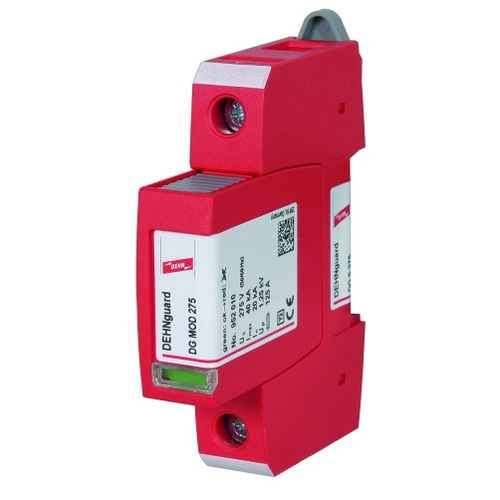

Type 2 surge arrester DG S seriesfor power suppliesfor electrical installationssingle-pole
Add to favorites
Compare this product
Characteristics
- Type
- type 2
- Applications
- for power supplies, for electrical installations
- Other characteristics
- single-pole, modular, DIN rail, plug-in, thermoplastic
- Voltage
42 V, 60 V, 120 V, 230 V, 480 V
- Primary current
7,500 A, 10,000 A, 15,000 A, 20,000 A
Description
Multi-purpose surge arrester consisting of a base part and a plug-in protection module
High discharge capacity due to heavy-duty zinc oxide varistor
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Energy coordination with other arresters of the Red/Line product family
Operating state / fault indication by green / red indicator flag in the inspection window
Narrow (modular) design acc. to DIN 43880
Multifunctional terminals for connecting conductors and busbars
Easy replacement of protection modules due to module locking system with module release button
Vibration and shock-tested according to EN 60068-2
