Centrifugal pump PMwaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- service, treatment
- Material
- thermoplastic
- Other characteristics
- mechanical, electronic, seal
- Flow
Max.: 55 m³/h
(1,942.30667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 35 m
(114'09" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)
Description
PP-PVDF-AISI316 construction materials

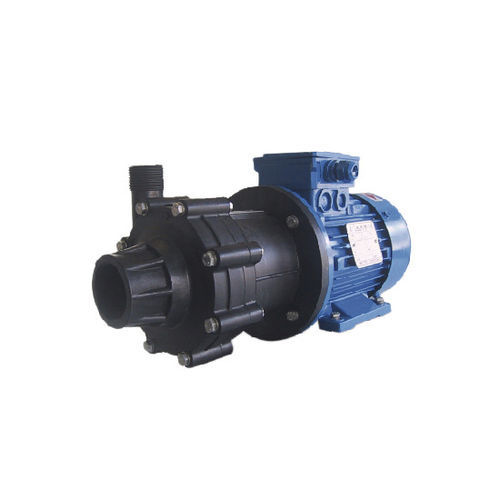

PM horizontal centrifugal electric pumps in thermoplastic with magnetic drive. The special feature of this pump is that it has no mechanical seal.
The advantages are obvious, the impeller of the pump is not directly connected to the motor shaft, therefore no mechanical seal is needed, which eliminates the possibility of leakage of the pumped liquid caused by wear.
It’s simple and robust construction was designed to ensure efficient and long-lasting service and to minimise downtime during maintenance.
Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, sugar, dairy, electronic, water treatment industries, as well as other hazardous chemical applications.
