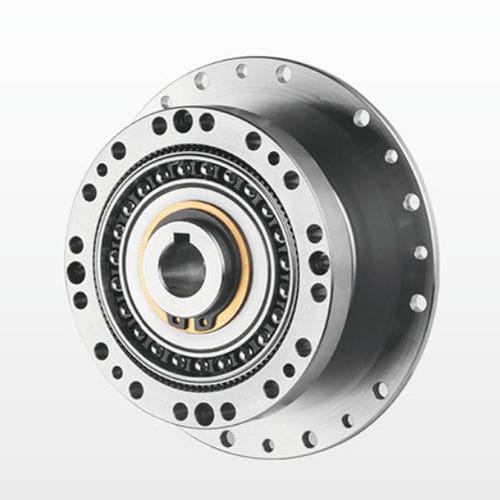

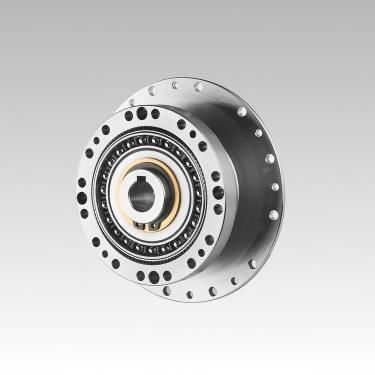

Strain wave gearbox NLGS-C-Ⅱ Seriesharmoniccoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- strain wave, harmonic
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm
- Mounting
- flange-mounted
- Configuration
- compact
- Number of stages
- single-stage
- Performance
- high-precision, low-noise, high-efficiency, low-backlash, high load capacity
- Applications
- for textiles, for robotics, for pharmaceutical products, packaging machine, for welding machines, for printing machines, for machine tools, for medical devices, for automobiles
- Other characteristics
- high-quality
- Rotational speed
Max.: 8,500 rpm
(53,407.0751 rad.min-1)Min.: 3,000 rpm
(18,849.5559 rad.min-1)- Backlash
0.01 °
- Gear ratio
Max.: 160 unit
Min.: 50 unit
- Weight
Max.: 1.87 kg
(4.12 lb)Min.: 0.11 kg
(0.24 lb)
Description
DESBOERN NLGS-C-Ⅱ Series Strain Wave Gearbox
Model:14\17\20\25\32\40
Ratio:50 - 160
Backlash: ≤20arcsec
Nominal Output Torque: 7-382 Nm
(1)Production Location:N is the factory codeFlexspline Shape:Flexsplines are divided into L top hat type and C cup typeFlexspline Length:Flexsplines are divided into S standard type and D short tube typeHigh Torque Design:G for high torque design,blank for standard typeSpecial Structure:T for three-wave generator structure Gearbox
(2)Specification Codes of Strain Wave Gearboxes:Such as 14,17,20,25,32,40,etc.
(3)Reduction Ratios of Strain Wave Gearboxes:Such as 30,50,80,100,120,160,etc.
(4)Structure Code
(5)Wave Generator Type:C for component type,U for combined type
(6)E001 is the project code for customized Strain Wave Gearboxes
Key Features
High precision:multiple teeth mesh at the same time in two 180 degree symmetripositions,so the gear pitch error and cumulative pitch error have a relatively averaimpact on the rotation accuracy,and can obtain very high position accuracy and rottion accuracy.
Large transmission ratio:the transmission ratio of single-stage strain wave getransmission can reach i=30-500,and the structure is simple.Three basic parts ontsame axis can achieve high speed ratio.
High bearing capacity:in the fast wave transmission,the meshing of teeth and teis surface contact,plus the number of meshing teeth at the same time is relatively larso the unit area load is small,and the bearing capacity is higher than other transmsion forms.
Small size and light weight:compared with the ordinary gear device,the volume aweight can be greatly reduced to achieve miniaturization and lightweight.
High transmission efficiency and long service life.
Smooth transmission,no impact,and low noise.
Installation Methods
Method1
(1).Fix the gearbox to the output flange,and fix the input flange to the circular spline.
(2).Fill the wave generator,gearbox cavity,and motor flange cavity with specified grease.
(3).Fix the motor and flange,adding a sealing ring if necessary.
(4).Securely fasten the wave generator to the motor shaft end(note wave generator orientation),fixing with screws and flatwashers.
(5).Slowly rotate the wave generator and insert it into the gearbox,then connect the gearbox to the motor flange.
Note:
(1).Please manufactue the flange according to the installation precision requirements on page P24.
(2).It is recommended to use 12.9 high-strength screws with thread locking adhesive for tightening.
(3).After installing the wave generator into the gearbox,it is recommended to run the motor at low speed(100r/min)for aperiod before tightening the screws.
(4).Design the flange cavity dimensions according to page P24 and fill with specified grease.
(5).Refe to the screw tightening torque table on page P22 for tightening torque.
Method2
(1).Connect the gearbox and motor via the flange.
(2).Fill the gearbox cavity and flange cavity with grease.
(3).After applying grease to the wave generator,fix it to the motor shaft end(note wave generator orientation)with screwsand flat washers.
(4).After filling the output flange cavity with grease,connect and fix it to the circular spline of the gearbox.
Note:
(1).Please manufacture the flange according to theinstallaton precision requirements on page P24.
(2).It is recommended to use 12.9 high-strength screws with thread locking adhesive for tightening.
(3).After installing the wave generator into the gearbox,it is recommended to run the motor at low speed(100r/min)for aperiod before tightening the screws.
(4).Design the flange cavity dimensions according to page P24 and fill with specified grease.
(5).Refer to the screw tightening torque table on page P22 for tightening torque.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
Model:14\17\20\25\32\40
Ratio:50 - 160
Backlash: ≤20arcsec
Nominal Output Torque: 7-382 Nm
(1)Production Location:N is the factory codeFlexspline Shape:Flexsplines are divided into L top hat type and C cup typeFlexspline Length:Flexsplines are divided into S standard type and D short tube typeHigh Torque Design:G for high torque design,blank for standard typeSpecial Structure:T for three-wave generator structure Gearbox
(2)Specification Codes of Strain Wave Gearboxes:Such as 14,17,20,25,32,40,etc.
(3)Reduction Ratios of Strain Wave Gearboxes:Such as 30,50,80,100,120,160,etc.
(4)Structure Code
(5)Wave Generator Type:C for component type,U for combined type
(6)E001 is the project code for customized Strain Wave Gearboxes
Key Features
High precision:multiple teeth mesh at the same time in two 180 degree symmetripositions,so the gear pitch error and cumulative pitch error have a relatively averaimpact on the rotation accuracy,and can obtain very high position accuracy and rottion accuracy.
Large transmission ratio:the transmission ratio of single-stage strain wave getransmission can reach i=30-500,and the structure is simple.Three basic parts ontsame axis can achieve high speed ratio.
High bearing capacity:in the fast wave transmission,the meshing of teeth and teis surface contact,plus the number of meshing teeth at the same time is relatively larso the unit area load is small,and the bearing capacity is higher than other transmsion forms.
Small size and light weight:compared with the ordinary gear device,the volume aweight can be greatly reduced to achieve miniaturization and lightweight.
High transmission efficiency and long service life.
Smooth transmission,no impact,and low noise.
Installation Methods
Method1
(1).Fix the gearbox to the output flange,and fix the input flange to the circular spline.
(2).Fill the wave generator,gearbox cavity,and motor flange cavity with specified grease.
(3).Fix the motor and flange,adding a sealing ring if necessary.
(4).Securely fasten the wave generator to the motor shaft end(note wave generator orientation),fixing with screws and flatwashers.
(5).Slowly rotate the wave generator and insert it into the gearbox,then connect the gearbox to the motor flange.
Note:
(1).Please manufactue the flange according to the installation precision requirements on page P24.
(2).It is recommended to use 12.9 high-strength screws with thread locking adhesive for tightening.
(3).After installing the wave generator into the gearbox,it is recommended to run the motor at low speed(100r/min)for aperiod before tightening the screws.
(4).Design the flange cavity dimensions according to page P24 and fill with specified grease.
(5).Refe to the screw tightening torque table on page P22 for tightening torque.
Method2
(1).Connect the gearbox and motor via the flange.
(2).Fill the gearbox cavity and flange cavity with grease.
(3).After applying grease to the wave generator,fix it to the motor shaft end(note wave generator orientation)with screwsand flat washers.
(4).After filling the output flange cavity with grease,connect and fix it to the circular spline of the gearbox.
Note:
(1).Please manufacture the flange according to theinstallaton precision requirements on page P24.
(2).It is recommended to use 12.9 high-strength screws with thread locking adhesive for tightening.
(3).After installing the wave generator into the gearbox,it is recommended to run the motor at low speed(100r/min)for aperiod before tightening the screws.
(4).Design the flange cavity dimensions according to page P24 and fill with specified grease.
(5).Refer to the screw tightening torque table on page P22 for tightening torque.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
