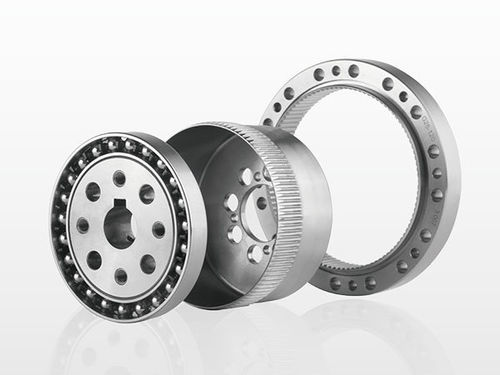

Strain wave servo-gearbox NCGS-C-Ⅰcoaxial5 - 10 Nm10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm
- Mounting
- flange-mounted
- Configuration
- compact
- Number of stages
- single-stage, two-stage
- Performance
- low-backlash, high-precision, high-efficiency, low-noise, high load capacity
- Applications
- for pharmaceutical products, for textiles, for machine tools, for robotics, packaging machine, for printing machines, for medical devices
- Rotational speed
Max.: 7,300 rpm
(45,867.2527 rad.min-1)Min.: 3,000 rpm
(18,849.5559 rad.min-1)- Backlash
0.01 °
- Gear ratio
Max.: 160 unit
Min.: 50 unit
- Weight
Max.: 1.7 kg
(3.75 lb)Min.: 0.15 kg
(0.33 lb)
Description
DESBOER NCGS-C-ⅠSeries Strain Wave Gearbox
Model:14\17\20\25\32\40
Ratio:50 - 160
Backlash: ≤20arcsec
Nominal Output Torque: 7-382 Nm
(1)Production Location:N is the factory code. Flexspline Shape:Flexsplines are divided into L top hat type and C cup type. Flexspline Length:Flexsplines are divided into S standard type and D short tube type. High Torque Design:G for high torque design,blank for standard type. Special Structure:T for three-wave generator structure Gearbox
(2)Specification Codes of Strain Wave Gearboxes:Such as 14,17,20,25,32,40,etc.
(3)Reduction Ratios of Strain Wave Gearboxes:Such as 30,50,80,100,120,160,etc.
(4)Structure Code
(5)Wave Generator Type:C for component type,U for combined type
(6)E001 is the project code for customized Strain Wave Gearboxes
Key Features
High precision:multiple teeth mesh at the same time in two 180 degree symmetripositions,so the gear pitch error and cumulative pitch error have a relatively averaimpact on the rotation accuracy,and can obtain very high position accuracy and rottion accuracy.
Large transmission ratio:the transmission ratio of single-stage strain wave getransmission can reach i=30-500,and the structure is simple.Three basic parts ontsame axis can achieve high speed ratio.
High bearing capacity:in the fast wave transmission,the meshing of teeth and teis surface contact,plus the number of meshing teeth at the same time is relatively larso the unit area load is small,and the bearing capacity is higher than other transmsion forms.
Small size and light weight:compared with the ordinary gear device,the volume aweight can be greatly reduced to achieve miniaturization and lightweight.
High transmission efficiency and long service life.
Smooth transmission,no impact,and low noise.
Installation Methods:
Apply grease to the wave generator,gearbox inner cavity,and connecting flange cavity.
Fix the motor and flange,adding a sealing ring if necessary.
Securely fasten the wave generatorto the motor shaftend(note wave generator orientation),fixing with screws and flatwashers.
Slowly rotate the wave generator and insert it into the gearbox,then connect the gearbox to the motor flange.
Note:
(1).Please manufacture the flange according to the installation precision requirements on page P23.
(2).It is recommended to use 12.9 high-strength screws with thread locking adhesive for tightening.
(3).After installing the wave generator into the gearbox,it is recommended to run the motor at low speed(100r/min)for aperiod before tightening the screws.
(4).Design the flange cavity dimensions according to page P23 and fill with specified grease.
(5).Refer to the screw tightening torque table on page P22 fo tightening torque.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
Model:14\17\20\25\32\40
Ratio:50 - 160
Backlash: ≤20arcsec
Nominal Output Torque: 7-382 Nm
(1)Production Location:N is the factory code. Flexspline Shape:Flexsplines are divided into L top hat type and C cup type. Flexspline Length:Flexsplines are divided into S standard type and D short tube type. High Torque Design:G for high torque design,blank for standard type. Special Structure:T for three-wave generator structure Gearbox
(2)Specification Codes of Strain Wave Gearboxes:Such as 14,17,20,25,32,40,etc.
(3)Reduction Ratios of Strain Wave Gearboxes:Such as 30,50,80,100,120,160,etc.
(4)Structure Code
(5)Wave Generator Type:C for component type,U for combined type
(6)E001 is the project code for customized Strain Wave Gearboxes
Key Features
High precision:multiple teeth mesh at the same time in two 180 degree symmetripositions,so the gear pitch error and cumulative pitch error have a relatively averaimpact on the rotation accuracy,and can obtain very high position accuracy and rottion accuracy.
Large transmission ratio:the transmission ratio of single-stage strain wave getransmission can reach i=30-500,and the structure is simple.Three basic parts ontsame axis can achieve high speed ratio.
High bearing capacity:in the fast wave transmission,the meshing of teeth and teis surface contact,plus the number of meshing teeth at the same time is relatively larso the unit area load is small,and the bearing capacity is higher than other transmsion forms.
Small size and light weight:compared with the ordinary gear device,the volume aweight can be greatly reduced to achieve miniaturization and lightweight.
High transmission efficiency and long service life.
Smooth transmission,no impact,and low noise.
Installation Methods:
Apply grease to the wave generator,gearbox inner cavity,and connecting flange cavity.
Fix the motor and flange,adding a sealing ring if necessary.
Securely fasten the wave generatorto the motor shaftend(note wave generator orientation),fixing with screws and flatwashers.
Slowly rotate the wave generator and insert it into the gearbox,then connect the gearbox to the motor flange.
Note:
(1).Please manufacture the flange according to the installation precision requirements on page P23.
(2).It is recommended to use 12.9 high-strength screws with thread locking adhesive for tightening.
(3).After installing the wave generator into the gearbox,it is recommended to run the motor at low speed(100r/min)for aperiod before tightening the screws.
(4).Design the flange cavity dimensions according to page P23 and fill with specified grease.
(5).Refer to the screw tightening torque table on page P22 fo tightening torque.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
