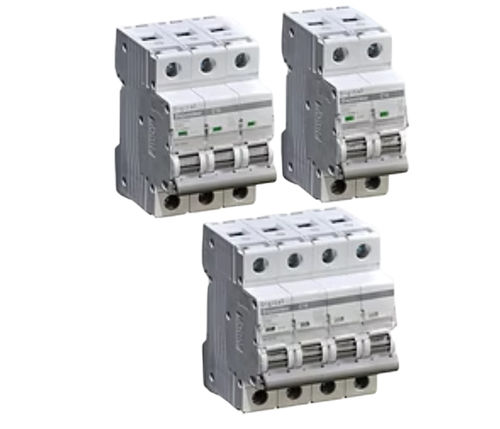

Thermal-magnetic circuit breaker MTZ‐D234 seriesshort-circuitACbipolar
Add to favorites
Compare this product
Characteristics
- Type
- thermal-magnetic
- Electrical characteristics
- short-circuit, AC, bipolar
- Number of poles
- 3-pole, tetrapolar, 2-pole
- Other characteristics
- DIN rail, modular
- Primary current
Min.: 2 A
Max.: 125 A
- VAC
Min.: 12 V
Max.: 400 V
- Rating
Min.: 1 A
Max.: 63 A
Description
Magneto-thermal circuit breakers allow the circuit to be cut off in the event of overcurrent or a dead short circuit, while surge protectors will act on overvoltages of atmospheric origin.
These components enable the protection of residential, commercial, and industrial electrical installations.
The NF C 15-100 standard standardizes the necessary number of protective devices as well as the general organization of the installation.
Magneto-Thermal Protection
50/60 Hz
Icc 6000 & 10,000 A under NF EN 60898-1
Icc up to 15,000 A under NF EN 60947-2
Class 3
Curve B, C, and D
Standard NF EN 60898-1 and 60947-2"
Other DIGITAL ELECTRIC products
Miniature Circuit Breaker
