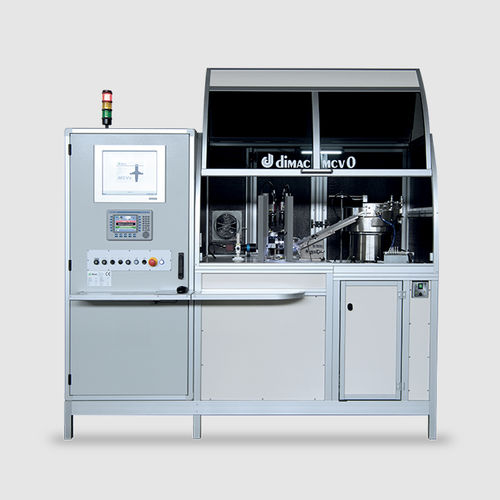

Optical sorting machine MCV0

automaticcontinuoushigh-speed

• High speed continuous and index rotary table for high accuracy inspection and sorting of small and micro-screws • Modular configuration with options for recess Inspection and 360º all around dimensional control with part rotation MR-INSP Mechanical recess-drives inspection with interchangeable penetrating gages Accuracy < 0.1mm icone-01SG Super Gewinde tool for 360º all around optical inspection of external threads – It allows to detect any small and localized thread defect icone_catalogo-01MSR Multiple Statistic Report analysis with data collection in web-compatible formats – Listing of the defective parts divided by batches and SPC PARTS THAT CAN BE INSPECTED Screws, microscrews, pins, studs, ball studs, bushes, shafts, threaded inserts, special components obtained by cold forming or turning MODULARITY Interchangeable feeding systems for high speed outputs with special design and easy changing-over procedures Satations for 360° dimensional control and bit gauging WORKING RANGE Head diameter 3-12 mm Head height 2-5 mm Shank diameter 2-5 mm Shank length 5-20 mm
