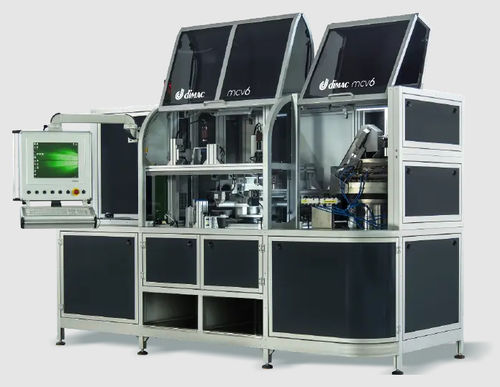

Industrial sorting machine mcv6

partshandling

100% inspection and sorting machine with a 900 mm diameter glass table, optimized for flat parts, bushings, and not-hangable metal components with a diameter of 5-50 mm and height in the range of 1-45 mm. Operating continuously, the machine can be freely modularly equipped with different feeding systems and up to 12 control stations. The machine works by Dimac MCVx 2.0 vision software and control system, supported by Dimac PLC-managed handling system. AVAILABLE CONTROLS Top dimensional camera Side dimensional camera Top surface camera Bottom surface camera Tilted camera for Inner thread Eddy current heat treatment control station AI tools control station SFS control station Multi-camera control station AVAILABLE FUNCTIONS Multilanguage, user-friendly interface for the free creation of new recipes Unlimited number of recipes and control plans Sorting statistics, measurements, and defects reports available for ERP exchange Users’ login is regulated by password and hierarchical privileges Offline monitoring Data backup system by UPS Close circuit air conditioning, IP 55 electrical cabinet, Fanless PC for dust and oil protection All Dimac machines are built to be upgradable OPTIONAL EXTRA Additional 3rd Exit chute for specific defect selection Isolation transformer Bar code reader to load recipes Metering for power and air consumption (Transaction 5.0 compliance) Data collection in real-time Offline programming Loaders and vibrating hoppers Boxing machines MSA / metrological report at the delivery and periodically Guarantee expansion and maintenance programs
