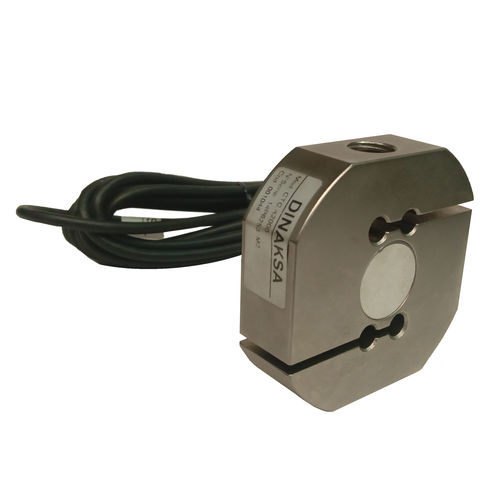

Tension/compression load cell DKCTCS-beamstrain gaugeanalog
Add to favorites
Compare this product
Characteristics
- Type
- tension/compression
- Form
- S-beam
- Technology
- strain gauge
- Output signal
- analog
- Applications
- weighing, for crane
- Other characteristics
- steel construction, high-precision, stainless steel, compact, precision, aluminum, nickel-plated, oil-resistant, high-capacity, with data logger, corrosion-resistant, IP67, high-sensitivity, with amplified output, custom
- Rated load
Max.: 5,000 kg
(11,023.11 lb)Min.: 15 kg
(33.07 lb)- Length
60 mm, 94 mm
(2.362 in, 37.008 in)- Height
Max.: 89 mm
(3.5 in)Min.: 60 mm
(2.36 in)
Description
DKCTC TRACTION / COMPRESSION LOAD CELL
Cell designed to work with traction and shear.
TECHNICAL CHARACTERISTICS
Rated load (Cn): 15, 25, 50, 75, 100, 150, 200, 250, 300, 500, 750, 1000, 1500, 2000, 2500, 3000, 5000 KG
* Min. Insulation resistance: 4 GΩ
* Sensitivity: 2.0 mV / V ± 0.1%
* Input impedance: 380 Ω ± 10Ω
* Output impedance / Output resistance. - 350 Ω ± 1.5Ω
* Load limit without loss of characteristics: 150% F.E.
* Minimum breaking load: 250% F.E
* Protection: IP 67
* Cable type: Flexible, Ø6 4x0.22mm2
* Cable length: 4 m.
* Material: 15… 75kg Aluminum. / 75… 5000kg Alloy Steel.
* Surface treatment: 15… 75kg Natural / 75… 5000kg Chemical Nickel
* Zero adjustment tolerance: 1.5% F.S.
* Maximum excitation voltage: 12V.
* Hysteresis error: 0.023% F.E.
* Creep (30 minutes): 0.019% F.S.
* Maximum linearity error: 0.021% F.S.
* Compensated temperature range: -10… 40 ºC
* Service temperature range: -20… 60 ºC
* Storage temperature range: -20… 70 ºC
* Effect of temperature on sensitivity: 0.026% F.S.
* Temperature effect on the zero signal: 0.015% / 5ºC
