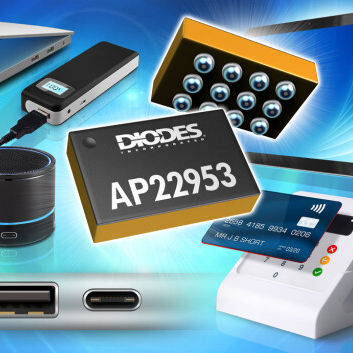

ESD switch AP22953

power

SWITCH FOR VBUS LINE WITH OVERVOLTAGE, SURGE, AND ESD PROTECTION The AP22953 device is a single-chip solution for USB 2.0/3.0/Type-C connector VBUS line protection. The bidirectional MOSFET switch ensures normal current flow in both charging and host mode while protecting the internal circuits from overvoltage conditions at the VBUS_CON pin. On the VBUS_CON pin, the device has overvoltage protection up to 30V. After the #EN pin is pulled low, the AP22953 counts 20ms before turning on the MOSFET via soft-start delay. The #ACK pin indicates the MOSFET is fully turned ON. The typical application interface for the AP22953 is the VBUS line in USB connectors. Typical end equipment for the AP22953 include smartphones, tablet PCs, wearables, and electronic-point-of-sale (EPOS) systems. The AP22953 can also be used with other devices that use a 5V power rail interface. Overtemperature protection turns off the switch at 145°C (typical). The AP22953 is available in the wafer level chip scale W-WLB2013-12 1.988mm x 1.288mm x 0.64mm package with backside laminate. Smartphones Tablet PCs Wearables Electronic-Point-of-Sale (EPOS) Systems Surge protection IEC61000-4-5 >100V Integrated 39mΩ (typ) N-Channel MOSFET Switch Overvoltage Protection (OVP) at VBUS_CON Up to 30VDC Integrated Input Enable and Status Output Signal Overtemperature Protection (OTP) ESD Protection Human Body Model >4kV Charged Device Model >1kV IEC61000-4-2 Air Discharge >15kV IEC61000-4-2 Contact Discharge >15kV otally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Devic
