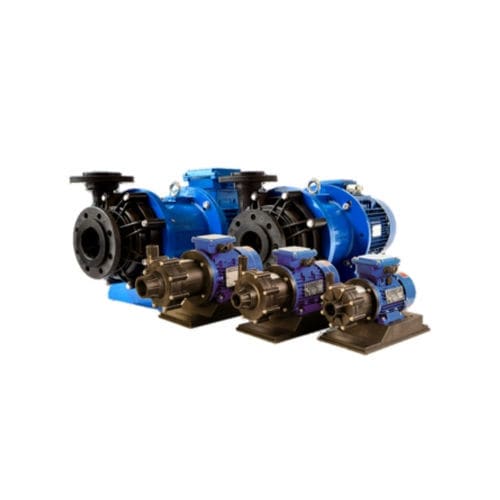

Impeller pump DVM

for chemicalsmagnetic-drivestationary

No mechanical seals Materials PP-GF, PVDF Engine 2900rpm//1500rpm Motor coated with corrosive EPOXI paint Type of construction Horizontal pump with hermetic seal and magnetic coupling, with special bearing pair, suitable for dry running. Features Leak and emission-free due to shaft-joint-free construction Construction size SHM 20-15-80 0,18 kW SHM 40-40-100 0,37 kW SHM 40-40-125 0,75 kW SHM 50-40-145 1,50 kW SHM 50-40-145 2,20 kW SHM 65-50-145 4,00 kW SHM 85-50-180 5,50 kW SHM 85-50-180 7,50 kW Technical implementation Axial inlet connection and radial inlet connection The media contacting components are made of PP, glass fibre reinforced or PVDF. Wheel support by pump shaft made of aluminium oxide (Al2O3) or silicide carbon (SSiC) with axial guidance Axial bearing in carbon, aluminium oxide (Al2O3) or silicide carbon (SSiC) Silicon silicide carbon (SSiC) or HD carbon bushing Open (20-15-80) or closed radial wheel Power transmission via the central coupling with overload protection Magnets with high energy density Diffusion-tight encapsulated internal magnetic carrier, non-magnetic separating flange of PP-GF or PVDF to prevent eddy current losses
