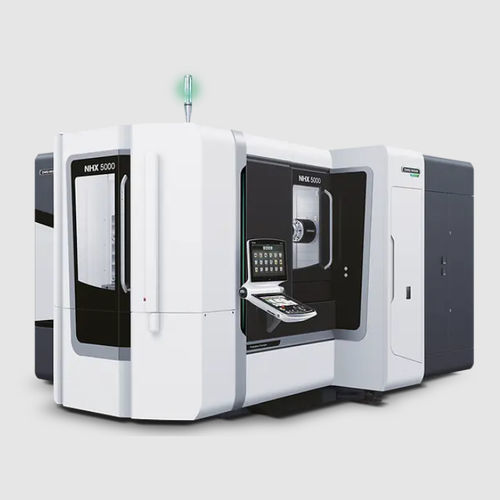

3-axis CNC milling center NHX 5000horizontalcompactprecision
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Other characteristics
- compact, precision, high-rigidity
- X travel
730 mm
(29 in)- Y travel
730 mm
(29 in)- Z travel
880 mm
(35 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Workpiece max height
1,000 mm
(39 in)- Work feed X-axis
60,000 mm/min
(39 in/s)- Work feed Y-axis
60,000 mm/min
(39 in/s)- Work feed Z-axis
60,000 mm/min
(39 in/s)- Table load capacity
700 kg
(1,543 lb)
Description
Dynamic
Up to 60,000 mm/min feed drive and up to 1.2 g acceleration.
Powerfull spindle as standard with 15,000 rpm and 111/116 Nm
Direct drive table available with 100 rpm
High rigidity
Thick, high-rigidity bed.
High rigidity bed by stepped X-axis guideways.
Large diameter spindle bearing of 70 mm
Compact
Compact horizontal machining centre with a footprint of just 14.7 m²
Pallet size 500 x 500 mm
Quick and easy to set up thanks to ist three-point support
Precise
Direct scale feedback with 0.01 µm resolution
