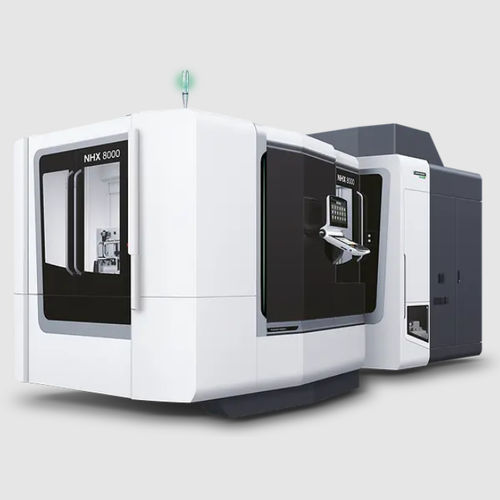

3-axis CNC milling center NHX 8000verticalcuttinghigh-precision
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Applications
- cutting
- Other characteristics
- high-precision, high-speed, high-performance
- X travel
1,400 mm
(55 in)- Y travel
1,200 mm
(47 in)- Z travel
1,350 mm
(53 in)- Power
40 kW
(54.38 hp)- Workpiece max height
1,450 mm
(57 in)- Work feed X-axis
50,000 mm/min
(33 in/s)- Work feed Y-axis
50,000 mm/min
(33 in/s)- Work feed Z-axis
50,000 mm/min
(33 in/s)
Description
High Precision
Driven at the Center of Gravity
Box-in-Box Construction
High speed
Max. acceleration X-, Y- and Z-axes: 0.82 / 0.57 / 0.69 G {8.0 / 5.6 / 6.7 m/s2 (26.2 / 18.4 / 22.0 ft/s2)}
Rapid traverse rate X-, Y- and Z-axes: 50 m/min (1,968.5 ipm)
Cutting feedrate X-, Y- and Z-axes: 50 m/min (1,968.5 ipm)
High cutting performance
High-output spindle with a max. output of 40 kW (53.3 HP)
Max. spindle torque: 1,309 N・m (965.5 ft・lbf) (option)
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
