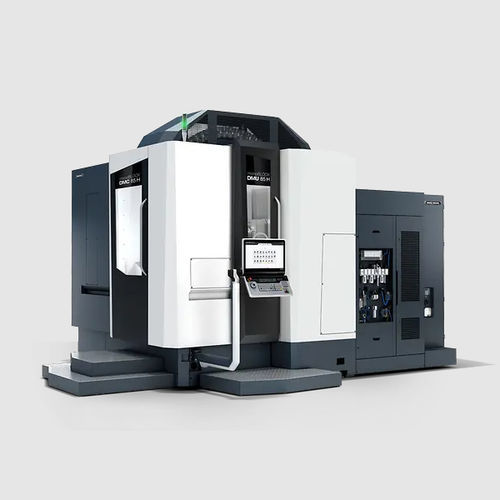

5-axis CNC milling center DMU 85 H monoBLOCK

universalwith rotary tableHSK-A 100

Ergonomic Ingenious working area for machining clamping towers and 5-axis components on one machine Ergonomic cab for easy access to the work area and easy set-up of components Small footprint (17.5 m²) for high area productivity and slim design (< 3.5 m) for easy linking Precise One-piece, inherently rigid cast iron machine bed with 3-point support for maximum rigidity (also available with HSK-A100) and highest precision Thermosymmetrical design with extensive cooling measures for maximum long-term accuracy (up to 6 µm) Maximum process reliability through horizontal machining for ideal chip and heat dissipation Versatile 5-axis capability for maximum flexibility thanks to swivel rotary table with bearings on both sides for components up to 1,000 kg Ingenious working area for machining clamping towers and 5-axis components on one machine Mill-turn variant for complete machining with up to 800 rpm Extensive selection of flexible automation solutions thanks to standardized interface Stiff monoBLOCK concept monoBLOCK – Maximum stability from one casting Also available with HSK-A100 tool holder for tools up to 280 mm diameter and 30 kg Highest availability due to reinforced mass production technology and optimum maintenance access Proven division of round and linear axes for easy to understand 5-axis kinematics. Clamping of the swivelling rotary table
