Modular formwork T

lightweightbridgebeam

Product overview

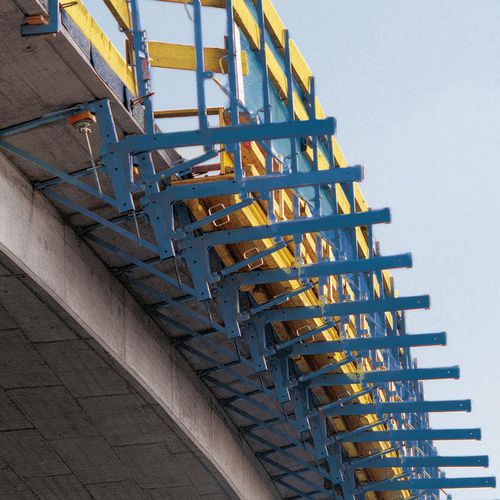

The Bridge edge beam formwork T is a manual, fast-adjusting formwork composed of a small number of parts. It combines low dead weight with a high load-bearing capacity, enabling efficient on-site handling and installation.

Great flexibility

• Adapts to a wide range of cantilevered parapet geometries
• Generous bracket adjusting range for lateral adaptation
• Continuous, millimetre-accurate height adjustment of the support

High efficiency

• Designed to accelerate construction progress
• Optimised for shorter superstructures
• Suitable for medium-length bridges with few repositioning cycles
• Performs well on bridges with tight radii and complex cross-sections

Additional features

• High horizontal and vertical adjustment capability
• Few different parts for simplified logistics and handling
• Low dead weight for easier manual assembly
• Quick in-situ adjustment without specialised lifting equipment

Technical specifications

• System type: manual bridge edge beam formwork
• Design: composed of a small number of different parts
• Load capacity: high load-bearing capability
• Weight: low dead weight for handling efficiency
• Adjustability: wide bracket range and continuous millimetre height adjustment
• Recommended applications: short superstructures; medium-length bridges with few repositioning cycles; bridges with tight radii and complex cross-sections
