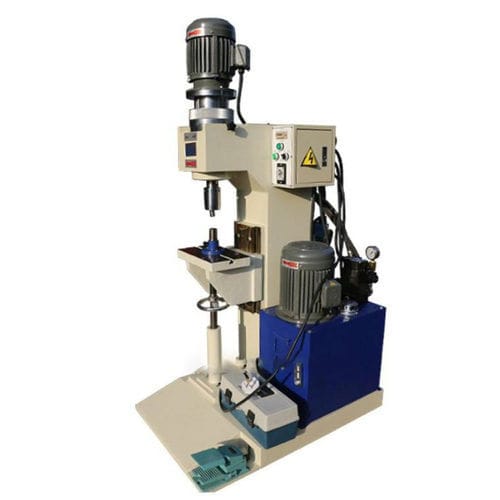

Hydraulic riveting machine HD series

bench-top

Developed based on the principles of cold rolling, these novel riveting devices are designed to mechanically fasten objects using rivets, primarily catering to situations requiring rivet assembly (hollow rivets, semi-hollow rivets, solid rivets, etc.). Function: Fasten objects using rivets, accomplishing tasks such as flanging, sealing, and connecting processes. Types of Machines: Pneumatic riveting machines and hydraulic riveting machines. Distinguishing Features: Adjustable pressure, stroke, speed, and riveting duration. The Utility Of the Product Is Extensive primarily employed in the riveting of solid rivets, semi-tubular rivets, and hollow rivets. Applications span across a diverse range of fields, such as electronic equipment enclosures, automotive components, ventilation ducts and valves, and washing machine casings, among others. Motor (HP): 1/2HP-3HP Spindle travel (MM):40 Speed (RPM):1400 Throat depth (MM):120-200 Working pressure(KG/M3):2-7/2-9/20-70/20-100 Maximum pressure (KG/M3):230-800/460-1100/430-1650/1400-5500
