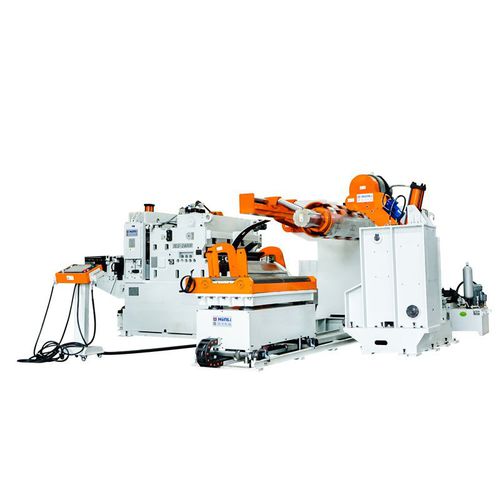

Sheet metal straightener-feeder G series

Material:Medium and high strength steel plate Material Thickness：1.0～6.0 mm Note: Please refer to the correction ability table for thickness x width Material Width：100 ～ 1800 mm Yield Strength ：≤1370 N/mm2 Coil Inner Diameter:Φ450~φ530mm/φ480~φ530mm/φ580~φ630mm Coil Outside Diameter:max φ 1600 mm Coil Weight:3000~15000kg Standard accessory: 1.Electric eye loop control system 2.Outgoing catenary to assist and support the material 3.Hold down arms device 4.Hold up arm for sheet feeding in 5.Feeding line easily adjusts by advance worm gear screw jacks device 6.Touch screen control for leveling setting 7.The uncoiler contain the butterfly brakes air compressor 8.Uncoiler-inverter device 9.Feed and staightener rolls with a hard chrome finished 10.Up and down device for feeding in sheet loop 11.Coil tip flattness device 12.Coil holding arms 13.Hold down arms with motor 14.Electrical oil lubricating equipment Coil Car It is used to smoothly transfer the coil to the spindle of coil shaft.It is used to lift the stripend so that the sheet can smoothly enter the leveling machine.Coil car is provided with a material roll anti-dumping baffle.It can effectively prevent the roll from falling over when the metal coil is narrow. Uncoiling spindle support arm driven by hydraulic cylinder, the support arm supports the end of the uncoiling spindle after loading, thereby balancing the gravity of the main bearing, improving the stability of the uncoiling, and increasing the service life of the spindle.
