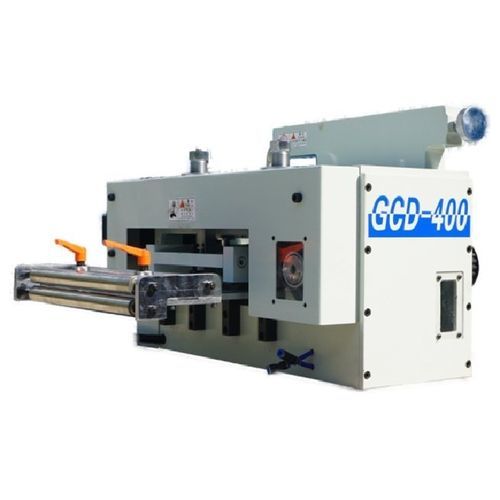

Automatic feeding system GCD series

materials

The high speed gear feeder is a synchronous feeding device specially designed for high-speed feeding. It is mainly used for punching silicon steel sheets, EI sheets with cold-rolled sheets as raw materials, motor stator and rotor sheets, ballast sheets, etc., which require high-speed processing and high-precision feeding. The one-piece box structure is strong and durable. Features: 1. The high-speed gear feeder is the cam feeder, which is mainly used with the double-head uncoiler and S-type leveler. It is suitable for stamped products that require high-speed processing and high-precision feeding. 2. There is no need to adjust the feeding step distance, and the feeding distance can only be changed by gears. The change of feed distance is made by the transformation of 1-4 gears. 3. The intermittent feeding method driven by precision cam. 4. Only the lower roller is driven, while the upper roller is pressed by a spring. 5. When inserting materials, the upper and lower rollers can be loosened by the manual switch of the air valve. 6. The upper and lower rollers are plated with hard chrome, and the hardness reaches above HRC60. 7. The relaxation device is an eccentric cam, so the relaxation angle can be adjusted freely from 0° to 180°. 8. Special orders can be made according to the different rotation directions of the punch processing shaft. 9. The box-type structure is adopted, which is compact and not easy to deform. Silicon steel sheet stamping production line, also known as stator and rotor stamping production line.
