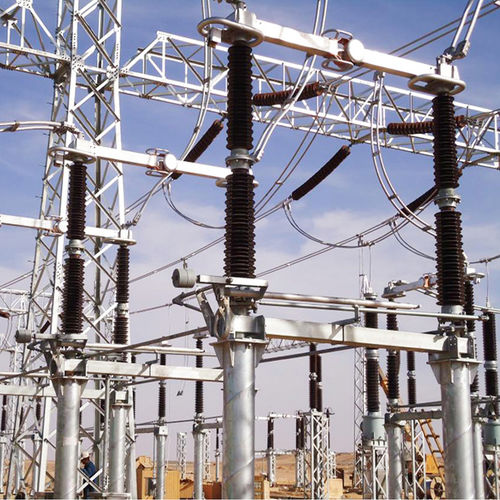

Manual disconnector GW4

motorizedhigh-voltage3-pole

• IEC 62271, ANSI/IEEE Std C37, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 62271 & IEEE C37, ~ 5000m
• Flexible contacting outgoing base
• Strong current flow in conductive rod contact finger
• Accurate transmission and ease of commission

Center Break Disconnector (Center Break Isolator) is a high-voltage switching device used in substations to isolate electrical equipment from the power system after the circuit has been de-energized. Unlike a circuit breaker, it cannot interrupt load current or fault current. Its purpose is to provide a visible isolation gap for maintenance and safety.

Working Principle
The center break disconnector consists of two movable contact arms connected to insulators.
·Closed position: Both arms meet at the center, completing the electrical path.
·Open position: The arms rotate away from each other, creating a clearly visible air gap that confirms the circuit is isolated.

The operation is usually driven by:
·Motor-operated mechanism (remote control)
·Manual operating handle
·Electrical interlocks with circuit breakers

The normal operating sequence is:
1.Open the circuit breaker.
2.Verify current is zero.
3.Open the center break disconnector.
4.Close the earthing switch if maintenance is required.

Main Components
·Fixed and moving contacts
·Conducting arms
·Post insulators
·Operating linkage
·Motor operating mechanism (or manual drive)
·Base frame
·Mechanical position indicator
·Auxiliary switches

Features
·Provides a visible isolation gap.
·Simple and reliable mechanical construction.
·Low maintenance requirements.
·Suitable for outdoor substations.
·High mechanical endurance.
·Excellent electrical insulation in the open position.

Typical Voltage Ratings
·33 kV Distribution substations
·66 kV Sub-transmission
·110 kV Transmission substations
·132 kV Transmission networks
·220 kV High-voltage transmission
·330 kV Extra-high voltage
·400 kV EHV substations
·500–765 kV Bulk power transmission

Advantages
·Clear visible isolation for operator safety.
·High reliability with simple construction.
·Lower cost compared with circuit breakers.
·Suitable for high-voltage and extra-high-voltage systems.
·Long service life.

Limitations
·Cannot interrupt load current.
·Cannot interrupt fault current.
·Must always be operated after the associated circuit breaker has opened.
·Switching under load can cause severe arcing and equipment damage.

Applications
Center break disconnectors are widely used in:
·Transmission substations
·Air-insulated substations (AIS)
·Switching stations
·Power plants
·Industrial substations
·Transformer isolation
·Circuit breaker isolation
·Busbar sectionalizing

The center break disconnector is one of the most common disconnectors in 72.5 kV to 245 kV air-insulated substations, offering a reliable and easily visible means of isolating equipment for maintenance while relying on the circuit breaker to perform all current-interrupting duties.
