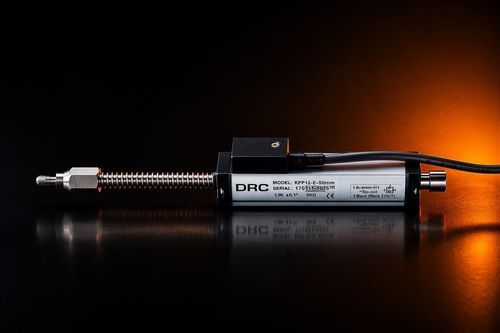

Linear position sensor PYpotentiometer
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- potentiometer
- Measuring range
Max.: 10 cm
(3.94 in)Min.: 1 cm
(0.39 in)- Linearity
Max.: 0.3 %
Min.: 0.1 %
- Ambient temperature
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)
Description
SERIES DEFINED BY ACTIVE ELECTRICAL TRAVEL 10 25 50 75 100
Total Electrical Travel mm 11 26 51 76 101
Active Electrical Travel mm 10 25 50 75 100
Resistance kΩ 1 1 5 5 5
Mechanical Travel mm 15 30 55 80 105
Resolution infinite
Recommended Cursor Current µA <1
