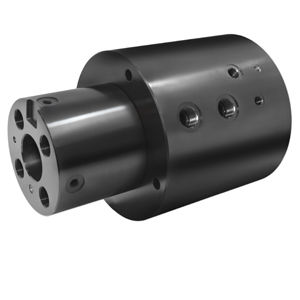

Oil rotary union XF-0760006

6-passagehigh-pressurefor mobile applications

Overview
6-passage rotating union engineered as a direct OEM replacement for tracked construction vehicles. Designed to fit existing bolt patterns and available space while delivering oil transfer across multiple independent passages.

Product details

• Industry: Heavy Equipment
• Media Type(s): Oil
• Environment: Outdoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 75 PSI [5 BAR], 580 PSI [40 BAR], 5,075 PSI [350 BAR]
• Max. Speed: 10 RPM
• Number of Passages: 6
• Passage Size(s): 0.380" [9.7 mm], 0.500" [12.7 mm], 1.000" [25.4 mm]
• Through Bore: 2.760" [70.1 mm]
• Diameter: 10.938" [277.8 mm]
• Length: 16.010" [406.7 mm]

Technical specifications

• Direct OEM replacement design for tracked vehicle installation
• Sealing materials and mating surfaces specified for oil media and outdoor environment
• Multiple pressure ratings provided for separate passages (see Product details)
• Low-speed operation up to 10 RPM suitable for slewing/rotation systems on heavy equipment
• Compact footprint: through-bore and outer diameter sized for integration into existing assemblies
