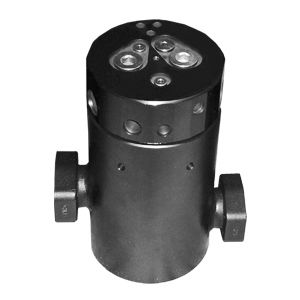

Oil rotary union UM-05805

5-passagefor mobile applicationsfor heavy-duty applications

Overview
5-passage rotary union designed for mobile cargo handling equipment. Configured for indexing (non-continuous) rotation, incorporating a customer-specified fluid interface and corrosion-resistant plating for outdoor service.

Custom project details

• Industry: Heavy Equipment
• Media Type(s): Oil
• Environment: Outdoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 5,000 PSI [345 BAR]
• Max. Speed: INDEXING
• Number of Passages: 5
• Passage Size(s): .313" [8 mm], .625" [15.9 mm], .875" [22.2 mm]
• Through Bore: None
• Diameter: 5.937" [150.8 mm]
• Length: 11.214" [284.8 mm]

Related notes

• Application: mobile cargo handling equipment
• Features: customer-specified fluid interface; corrosion-resistant plating for outdoor service

Technical specifications

• Configuration: 5 passages
• Passage diameters: 0.313" (8 mm); 0.625" (15.9 mm); 0.875" (22.2 mm)
• Maximum working pressure: 5,000 PSI (345 BAR)
• Operational speed: Indexing (non-continuous rotation)
• Materials: Carbon / alloy steel construction
• Service environment: Outdoor, corrosion-resistant plating applied
• Through bore: None
• Overall diameter: 5.937" (150.8 mm)
• Overall length: 11.214" (284.8 mm)
