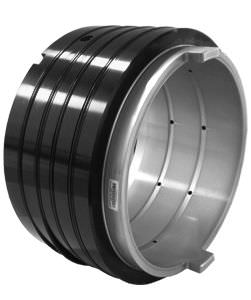

Oil rotary union KP-05742

2-passagefor heavy-duty applicationsfor construction vehicles

Overview
2-passage rotary union KP-05742 designed for large-scale mining equipment applications. The unit uses a customer-specified modular design to minimize usage wear and to integrate directly into a gear assembly. Intended for oil service in outdoor heavy-equipment environments.

Product details

• Industry: Heavy Equipment
• Media Type(s): Oil
• Environment: Outdoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 1,450 PSI [100 BAR]
• Max. Speed: 60 RPM

Geometry & passages

• Number of Passages: 2
• Passage Size(s): 0.250" [6.4 mm]
• Through Bore: 10.000" [254 mm]
• Diameter: 12.371" [314.2 mm]
• Length: 8.150" [207 mm]

Technical specifications

• Type: 2-passage fluid rotary union (oil)
• Application: Large-scale mining / heavy equipment
• Design: Customer-specified modular design to minimize wear and integrate into a gear assembly
• Materials: Carbon / Alloy Steel construction suitable for outdoor environments
• Pressure rating: up to 1,450 PSI (100 BAR)
• Max rotational speed: 60 RPM
• Passage diameter: 0.250" (6.4 mm)
• Through bore: 10.000" (254 mm)
• Overall diameter: 12.371" (314.2 mm)
• Overall length: 8.150" (207 mm)
