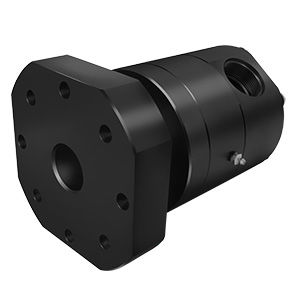

Gas rotary union TB-1270801for waterfor heavy-duty applicationssteel
Add to favorites
Compare this product
Characteristics
- Medium
- for gas, for water
- Applications
- for heavy-duty applications
- Material
- steel, carbon steel
- Other characteristics
- with seal, ball bearing, self-sealing
- Rotational speed
Max.: 100 rpm
(628.32 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 52 bar
(754 psi)Min.: 0 bar
(0 psi)- Nominal size
41.4 mm
(1.63 in)
Description
Overview
Key specifications
Geometry & passages
Materials & construction
Applications & environment
Related project categories
- Single-passage rotary union designed for rock drilling applications, providing sealed transfer of gas, water and other media between stationary and rotating components.
Key specifications
- Industry: Heavy Equipment
- Media: Gas, Water, Other
- Maximum pressure: 750 PSI (52 BAR)
- Maximum speed: 100 RPM
- Environment: Outdoor
Geometry & passages
- Number of passages: 1
- Passage size: 1.630" (41.4 mm)
- Through bore: None
- Overall diameter: 7.438" (188.9 mm)
- Overall length: 8.980" (228.1 mm)
Materials & construction
- Primary materials: Carbon / Alloy Steel
- Heavy-duty bearing system specified for high vibration and axial/radial loads
Applications & environment
- Intended for rock drilling and heavy equipment applications in outdoor environments
- Suitable for transfer of gas and water under dynamic rotation up to specified limits
Related project categories
- Passage size category: 1.000" - 1.999" (25.40 mm - 50.77 mm)
- Rotation speed: 100 RPM & over
- Pressure range: 200 - 6,499 PSI (14 - 448 BAR)
- Media examples: Gas, Water, Other
- Material example: Carbon / Alloy Steel
- Through bore: None
- Environment example: Outdoor
