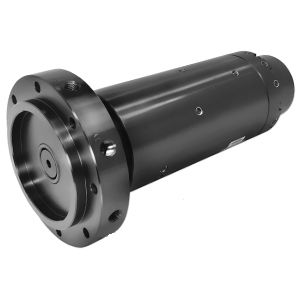

Gas rotary union XJ-0720007

7-passagefor construction vehiclescarbon steel

Overview
7-passage rotating union designed for tracked construction vehicle applications. Includes a customer-specified O-ring shaft adapter to allow direct integration into the customer's equipment. Suited for handling gas and other media in indoor operating environments and engineered for high-pressure, high-speed rotating use.

Key Details

• Industry: Heavy Equipment
• Media Type(s): Gas, Other
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 30 PSI [2 BAR], 2,500 PSI [172 BAR]
• Max. Speed: 150 RPM

Dimensions & Passages

• Number of Passages: 7
• Passage Size(s): 0.380" [9.7 mm]
• Through Bore: None
• Diameter: 7.938" [201.6 mm]
• Length: 15.760" [400.3 mm]

Features

• Customer-specified O-ring shaft adapter for direct equipment integration
• Designed for tracked vehicle construction operations
• Handles multiple media types including gas and other fluids
• Engineered for high-pressure and high-speed rotating applications

Technical specifications

• Product type: 7-passage custom rotating union
• Industry: Heavy Equipment
• Media: Gas, Other
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Maximum pressures: 30 PSI (2 BAR) and 2,500 PSI (172 BAR)
• Maximum rotational speed: 150 RPM
• Number of passages: 7
• Passage size: 0.380" (9.7 mm)
• Through bore: None
• Outer diameter: 7.938" (201.6 mm)
• Length: 15.760" (400.3 mm)
• Notable feature: O-ring shaft adapter per customer specification for direct equipment integration
