Water rotary union SE 6

for oilfor air6-passage

Description
DSTI SE Series 6-passage rotary unions provide six independent fluid passages in a compact, high-pressure-capable design. SE models include standard threaded side connections on shaft and housing and can be ordered with optional axial O-ring face seals for flush mounting. Units are engineered for direct integration with DSTI electrical slip rings for combined fluid and electrical/data transfer.

Key Features

• Six independent flow passages for multiple media routing.
• Compact form factor for space-restricted installations.
• Standard threaded side (radial) connections; optional axial O-ring face seals available.
• Designed for direct integration with electrical slip rings for combined fluid and electrical/data transfer.

Maximum Pressure — Options (table)

• 200 PSI [15 BAR] — SPS, LT, SE, GP, GPS, SCS, HVH, HPS
• 600 PSI [40 BAR] — SPS, LT, SE, GP, GPS, HVH, HPS
• 5,000 PSI [345 BAR] — SE, GP, GPS, HVH, HPS
• 7,500 PSI [515 BAR] — SE, GP, GPS, HPS
• 20,000 PSI [1,375 BAR] — HPS
• Other — custom solutions available

Maximum Speed — Options (table)

• 20 RPM — SPS, LT, SE, GP, GPS, SCS, HVH, HPS
• 50 RPM — SPS, LT, SE, GP, GPS, SCS, HPS
• 75 RPM — SPS, LT, SE, GP, GPS, SCS
• 300 RPM — SPS, LT, SE, GP, GPS, SCS
• 500 RPM — SPS, LT, GP, GPS, SCS
• Other — custom solutions available

Connection Type — Options (table)

• ASME‑BPE — SCS
• BSPP — SE, GP
• BSPT — LT
• NPT — SPS, LT, GP, GPS
• SAE‑ORB — SE, HVH
• Medium Pressure — HPS
• Other — custom solutions available

Suitable Media — Options (table)

• Air/Gas — SPS, LT, SE, GP, GPS, SCS, HVH, HPS
• Chemical — GPS, SCS, HPS
• Coolant — SE, GP, GPS, SCS, HPS
• DI/Tap Water — GPS, SCS, HPS
• Food‑Grade — SCS
• Oil/Hydraulic — SE, GP, GPS, SCS, HVH, HPS
• Steam — custom solutions
• Water/Glycol — SE, GP, GPS, SCS, HPS

Notes / Media & Seal Guidance

• Water/Glycol and coolant media must include rust inhibitors.
• Oil/hydraulic media must be petroleum‑based for standard seals; alternative seal materials required for higher temperatures or aggressive fluids.

Configuration example (model data)

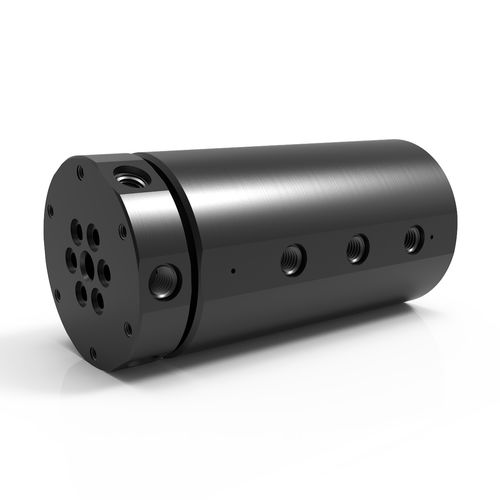

• Example part: SE-1161 [SEM-1161]
• Connection: #4 SAE‑ORB (G1/8"‑28 BSPP equivalent option)
• Passage size: 0.187" [4.75 mm]
• Diameter: 2.937" [74.6 mm]
• Length: 6.094" [154.79 mm]
• Through bore: 0.375" [9.525 mm]
• Min. torque (zero pressure, Oil/Hydraulic): 54 in‑lbs [6.1 Nm]
• Available downloads: Catalog PDF, Drawing PDF, DWG (2D), STEP (3D), Installation & Mounting docs

Mounting & Interface

• Standard: radial (side) threaded SAE‑ORB or BSPP shaft connections; side ports are standard when axial option is not selected.
• Optional: axial O‑ring face seal (specify at order) for face/flush mounting.
• Optional shaft flange and housing flange mounts available.
• Threaded mounting holes and multiple shaft connection options supported.

Integration & Customization

• Designed to integrate directly with electrical slip rings for combined fluid and electrical/data transfer.
• Custom modifications, mounting interfaces and material options available to meet project requirements.

caractéristiques / spécifications techniques

• Series: SE Series (6‑passage)
• Passage count: 6 independent passages
• Maximum pressure: up to 7,500 PSI [515 BAR] (series capability; other series and custom options exist)
• Maximum speed: up to 300 RPM (series capability; other speed options available)
• Maximum vacuum: 30 HG
• Temperature range: 0° F to 220° F [-18° C to 105° C] (higher temperatures require alternative seal materials)
• Housing material: Carbon Steel (Black Oxide)
• Shaft material: Carbon Steel (Black Oxide)
• Connection types: SAE‑ORB and BSPP standard on SE series; other thread types available across series
• Suitable media: Air/Gas, Coolant, Oil/Hydraulic, Water/Glycol (see media guidance above)
• Optional mounting: shaft flange mount, housing flange mount, face/flush mounting (specify at order)
• Documentation available: SE Series Catalog PDF; Installation & Mounting PDF; model drawings and 2D/3D files (DWG/STEP)
