SPST switch PBA22 series
DPSTIP65threaded

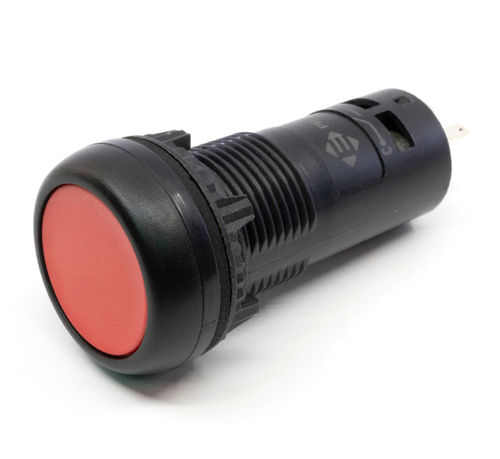

SPST switch - PBA22 series - E-SWITCH - DPST / IP65 / threaded
SPST switch - PBA22 series - E-SWITCH - DPST / IP65 / threaded
Add to favorites
Compare this product

Characteristics

Number of poles
SPST, DPST
Protection level
IP65
Mounting
panel mount, threaded
Other characteristics
polyamide, momentary, round, flush-mounted
Primary current

Max.: 6 A

Min.: 1.5 A

Voltage

Max.: 230 V

Min.: 24 V

Diameter / length

22 mm
(0.9 in)

Operating temperature

Max.: 65 °C
(149 °F)

Min.: -25 °C
(-13 °F)

Description

PUSHBUTTON, 6A, 230VAC, SPST, Off-(On), Panel Mount, Threaded Body with Nut IP65 rated 22mm diameter panel cutout 6A, 230VAC; 1.5A, 24VDC Modular interface/contact block design Panel mount, threaded body with nut design SPST, DPST, or DPST-NO/NC circuit; momentary function Round button, flush actuator; many actuator color options Quick connect – 0.110″ termination -25°C to 65°C operating temperature Housing material: PA6 GF30 (UL94-V0)
