SPDT switch PV16 series
DPDTIP67panel mount

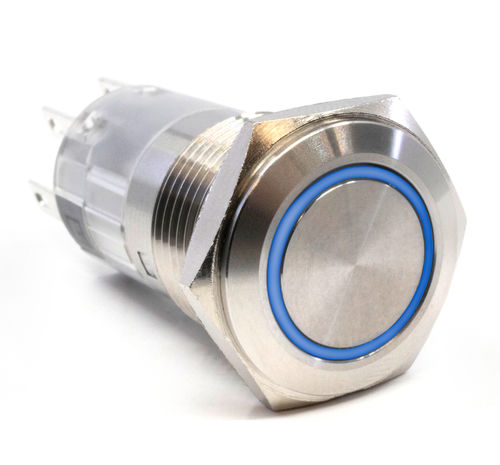

SPDT switch - PV16 series - E-SWITCH - DPDT / IP67 / panel mount
SPDT switch - PV16 series - E-SWITCH - DPDT / IP67 / panel mount
Add to favorites
Compare this product

Characteristics

Number of poles
SPDT, DPDT
Protection level
IP67
Mounting
panel mount
Other characteristics
illuminated, LED-illuminated, non-illuminated, LED, multicolor LED, momentary, latching
Primary current

Max.: 5 A

Min.: 2 A

Voltage

Max.: 220 V

Min.: 24 V

Diameter / length

16 mm
(0.6 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

16mm diameter panel cutout 2A, 24VDC / 5A, 220VAC; IP67 rated SPDT or DPDT, latching or momentary High or flat actuator Solder, wire leads 300mm, or wire leads 300mm w/ ECM connector Illuminated ring, dot, ring/power symbol, or non-illuminated Many LED colors and voltages including Bi-color LED Stainless steel, black anodized, or nickel finish Silver or gold contact material -40°C to 85°C operating temperature
