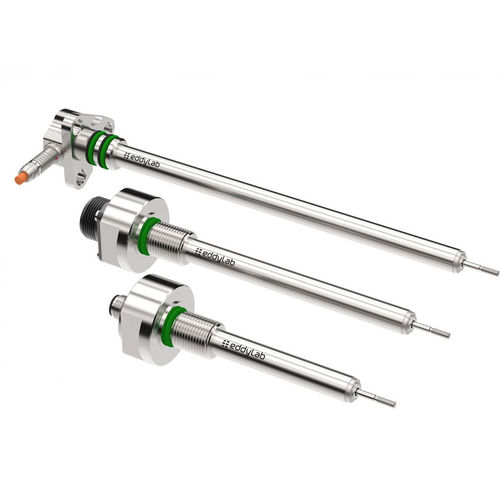

Linear displacement transducer SM-HYD seriesinductiveLVDTanalog
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- inductive, LVDT
- Output signal
- analog
- Protection class
- IP67, IP68
- Other characteristics
- stainless steel
- Measuring range
Max.: 180 mm
(7.09 in)Min.: 2 mm
(0.08 in)- Supply voltage
Max.: 10 V
Min.: 0 V
Description
Designed for integration into hydraulic and pneumatic cylinders or servo valves. Pressure resistant up to 400 bar.
Ranges
Type
free core, push rod unguided
Linearity max.
±0.30 %, optional ±0.20 % / ±0,1 %
Output analogue
Protection class
IP67 (optional IP68)
Operating temperature
Operating pressure
up to 400 bar
Catalogs
SM-HYD
8 Pages
