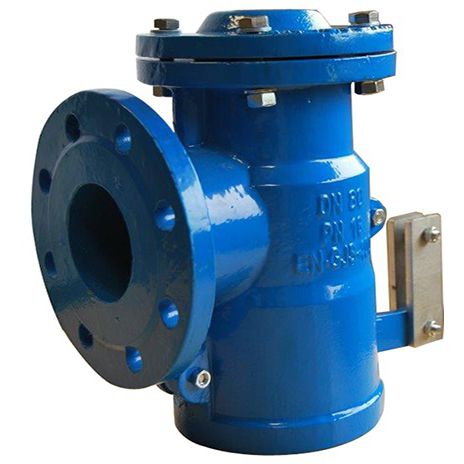

Float valve VFGJSlevel controlfor waterflange
Add to favorites
Compare this product
Characteristics
- Operation
- float
- Function
- level control
- Media
- for water
- Body
- flange, cast iron
- Applications
- for tank
- Other characteristics
- automatic
- DN
Min.: 50 mm
(1.969 in)Max.: 250 mm
(9.843 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)- Flow rate
Min.: 4 l/s
(1.06 us gal/s)Max.: 120 l/s
(31.7 us gal/s)
Description
The float valve is direct action device, the float or buoy is acting by the thrust of the fluid that finally is transmitted to the valve arm and closing seat. Valves are available in ductile iron and diameter from DN 50 (2” )up to DN 250 ( 10”)
Catalogs
Model VFGJS
2 Pages
