speed indicator / frequency / status / digital

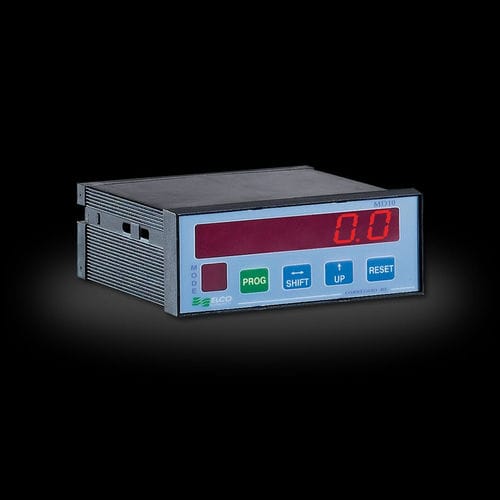

VELOCITÀ MD 10

{{requestButtons}}

Characteristics

  • Measured value:

    status, speed, frequency

  • Display:

    digital

Description

The MD10 setted as 'speed display' is the ideal solution to show axes speed, rotation speed of motors and in general every detectable quantity by reading a digital frequency signal. The product is also able to manage two settable set points that can be associated with two values that can be entered by the operator and can be associated with two independent clean contacts on board the instrument.

FEATURES
6 digit viewer + 1 status digit
n. 1 input from incremental bidirectional encoder 40khz
n. 2 adjustable digital inputs NPN / PNP
n. 2 digital relay outputs 1 A

POWER
> 220 AC
> 110AC
> 24 AC
> 24 DC

DIMENSIONS
> Frontal H: 46 mm / L: 93 mm
> Depth D: 90 mm
