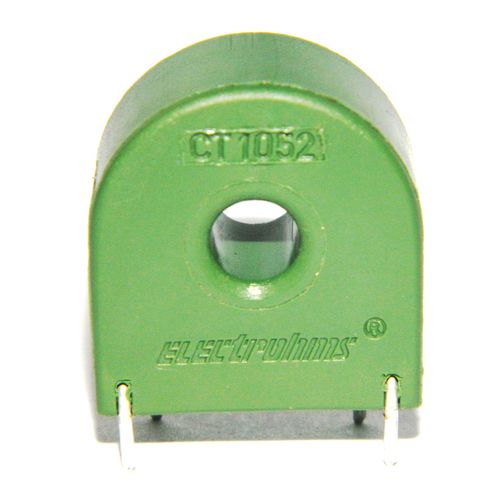

Current transformer CT1052encapsulatedfor energy metersPCB
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- for energy meters
- Mounting
- PCB
- Other characteristics
- high-accuracy
- Primary current
Max.: 20 A
Min.: 0.25 A
Description
High Accuracy Current Transformers for whole current measurements in energy metering .
KEY FEATURES
•Low Amplitude Error & Phase Error
•Encapsulated & PC Mountable
RELATED APPLICATION
•Energy management
•Smart Meter
SPECIFICATION
Product NoCT1052-A1
Ipn RMS(A)20
Turn Ratio1 : 2500
Pri. Opening (mm)6.3
Temp. Operating -10°c ... +60°c
Secondary TerminationPin Terminals
Mounting TypePCB
Rb (Ohms)90
AE %0.5
PE (Deg)0.5
DCR (Ohms)120 - 145
