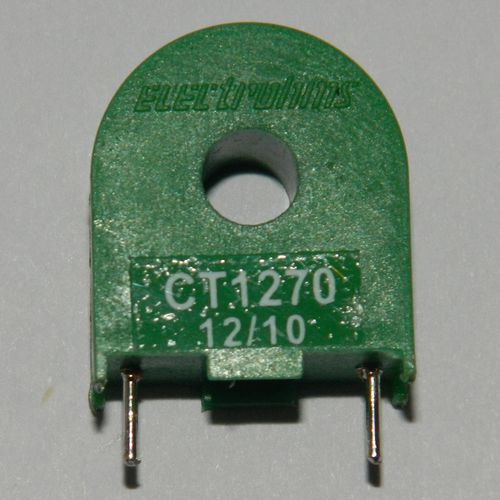

Current transformer CT1270encapsulatedindustrialfor inverters
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- industrial, for inverters
- Mounting
- PCB
- Other characteristics
- control, protection
- Primary current
5 A
Description
Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment
RELATED APPLICATION
Motor protection/Control/monitoring
Relay Protection
SPECIFICATION
Product No CT1270
Ipn RMS(A) 5
Turn Ratio 1 : 700
Pri. Opening (mm) 5.0
Temp. Operating -10°c ... +60°c
Secondary Termination Pin Terminals
Mounting Type PCB
Rb (Ohms) 10
AE % 1.5
PE (Deg) ...
DCR (Ohms) 28
