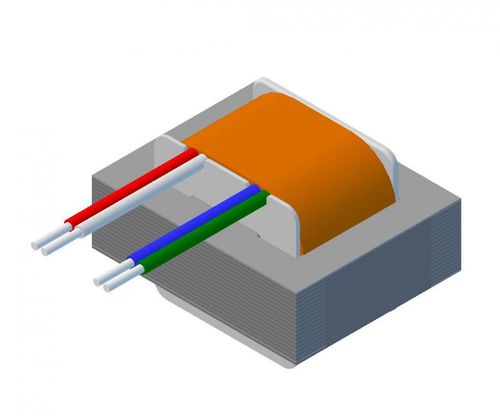

Instrument transformer VT1090measurementdryfor electronics
Add to favorites
Compare this product
Characteristics
- Type
- instrument, measurement
- Configuration
- dry
- Applications
- for electronics, protection, for energy meters
- Electrical characteristics
- voltage
- Mounting
- PCB
- Primary voltage
110 V
- Secondary voltage
4.3 V
Description
Voltage transformers (VT), also called potential transformers (PT), are used for metering and are designed to present negligible load to the supply being measured . They have an accurate voltage ratio to enable accurate metering.
KEY FEATURES
Smart Meter
RELATED APPLICATION
Smart Meter
SPECIFICATION
Product No VT1090
Input (volt) 110
Out put (volt) 4.3
Trans Ratio 1:1
Dielectric Strength (Pri/Sec) 4.0 KV AC
Operating Temperature Range -10 to 60 Deg C
Secondary Termination PIN
Mounting Type PCB
