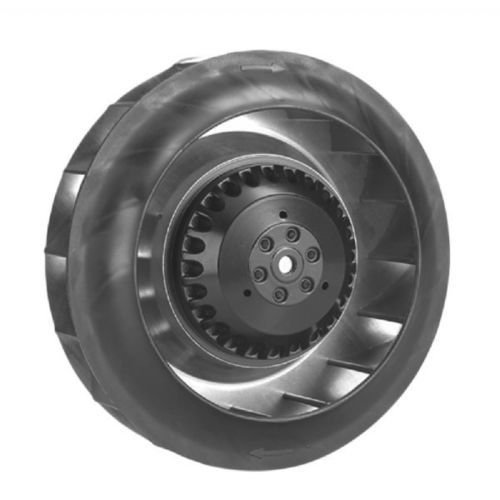

AC fan EA series

centrifugalventilationelectrically-powered

Overview
Designed for engineered air-moving applications where high reliability, high airflow, high static pressure and constrained installation space are key considerations. The EA series comprises motorized impellers with backward-curved geometry and built-in thermal protection, available across a wide range of diameters and lengths.

Specifications

• EA13070 — Ø 132.6 x 72.5 mm / Ø 5.22 x 2.85 in: Max Airflow 5.33 m³/min / 188 CFM; Thermal protection; Backward curved impeller
• EA13090 — Ø 132.6 x 91.5 mm / Ø 5.22 x 3.60 in: Max Airflow 5.33 m³/min / 188 CFM; Thermal protection; Backward curved impeller
• EA17554 — Ø 175.0 x 54.85 mm / Ø 6.88 x 2.16 in: Max Airflow 7.8 m³/min / 274 CFM; Thermal protection; Backward curved impeller
• EA18065 — Ø 182.4 x 68.5 mm / Ø 7.18 x 2.69 in: Max Airflow 8.3 m³/min / 290 CFM; Thermal protection; Backward curved impeller
• EA18085 — Ø 182.4 x 84.9 mm / Ø 7.18 x 3.34 in: Max Airflow 8.5 m³/min / 300 CFM; Thermal protection; Backward curved impeller
• EA19070 — Ø 190.0 x 70.0 mm / Ø 7.48 x 2.75 in: Max Airflow 10.4 m³/min / 370 CFM; Thermal protection; Backward curved impeller
• EA19070 F — Ø 235.0 x 87.2 mm / Ø 9.25 x 3.43 in: Max Airflow 7.0 m³/min / 247 CFM; Thermal protection; Backward curved impeller (F variant)
• EA22070 — Ø 223.0 x 71.0 mm / Ø 8.77 x 2.79 in: Max Airflow 15.0 m³/min / 530 CFM; Thermal protection; Backward curved impeller
• EA22070 F — Ø 259.0 x 97.8 mm / Ø 10.2 x 3.85 in: Max Airflow 12.3 m³/min / 434 CFM; Thermal protection; Backward curved impeller (F variant)
• EA22569 — Ø 225.0 x 69.0 mm / Ø 8.85 x 2.71 in: Max Airflow 15.6 m³/min / 550 CFM; Thermal protection; Backward curved impeller
• EA22585 — Ø 225.0 x 85.0 mm / Ø 8.85 x 3.34 in: Max Airflow 19.2 m³/min / 680 CFM; Thermal protection; Backward curved impeller
• EA22599 — Ø 225.0 x 99.0 mm / Ø 8.85 x 3.89 in: Max Airflow 22.0 m³/min / 770 CFM; Thermal protection; Backward curved impeller
• EA22599 F — Ø 259.0 x 154.5 mm / Ø 10.2 x 6.08 in: Max Airflow 15.5 m³/min / 547 CFM; Thermal protection; Backward curved impeller (F variant)
• EA25098 — Ø 251.5 x 98.1 mm / Ø 9.90 x 3.86 in: Max Airflow 24.0 m³/min / 850 CFM; Thermal protection; Backward curved impeller
• EA25098 F — Ø 259.0 x 130.9 mm / Ø 10.2 x 5.15 in: Max Airflow 19.3 m³/min / 681 CFM; Thermal protection; Backward curved impeller (F variant)
• EA31515 — Ø 318.0 x 154.5 mm / Ø 12.5 x 6.08 in: Max Airflow 33.0 m³/min / 1165 CFM; Thermal protection; Backward curved impeller
• EA36017 — Ø 360.0 x 167.3 mm / Ø 14.1 x 6.58 in: Max Airflow 46.5 m³/min / 1645 CFM; Thermal protection; Backward curved impeller
• EA40017 — Ø 400.0 x 162.4 mm / Ø 15.7 x 6.39 in: Max Airflow 53.8 m³/min / 1900 CFM; Thermal protection; Backward curved impeller

• We reserve the right to change the data without further notice.
• Data performance subjected to 10% tolerance.
• Models available in 115V and in 230V. Capable of operating full frequency (50Hz or 60Hz).

Technical characteristics

• Product type: AC centrifugal fans / motorized impellers
• Designed for high reliability, high airflow, high static pressure, and constrained installation space
• Impeller type: Backward curved impeller
• Protection: Thermal protection on all listed models
• Voltage options: 115V and 230V
• Frequency: 50Hz or 60Hz
• Airflow range (per table): approx. 5.33 to 53.8 m³/min (188 to 1900 CFM)
• Model range: EA13070, EA13090, EA17554, EA18065, EA18085, EA19070 (and F variant), EA22070 (and F variant), EA22569, EA22585, EA22599 (and F variant), EA25098 (and F variant), EA31515, EA36017, EA40017
