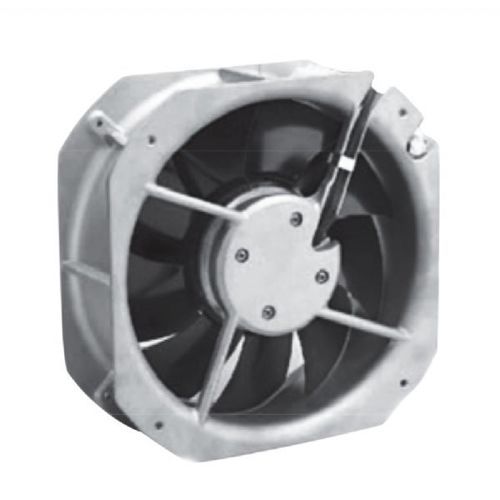

High-performance fan EA series

high-flowaxialcooling

Overview
AC axial fans designed for harsh-environment applications. Selected models deliver high volumetric flow and pressure coefficient, with integrated thermal protection for reliable operation in demanding industrial conditions.

Specifications (table)

• EA3998BNB — Ø398 × 98.3 mm / Ø15.66 x 3.87 in | Max airflow: 45.7 m³/min (1615 CFM) | Thermal Protection
• EA2880BMA — 280 × 280 × 80 mm / 11.0 x 11.0 x 3.15 in | Max airflow: 31.2 m³/min (1100 CFM) | Thermal Protection
• EA2880BMB — 280 × 280 × 80 mm / 11.0 x 11.0 x 3.15 in | Max airflow: 32.0 m³/min (1130 CFM) | Thermal Protection
• EA2880BMB E — 280 × 280 × 80 mm / 11.0 x 11.0 x 3.15 in | Max airflow: 32.0 m³/min (1130 CFM) | Thermal Protection
• EA2880BMB B — 280 × 280 × 80 mm / 11.0 x 11.0 x 3.15 in | Max airflow: 32.0 m³/min (1130 CFM) | Thermal Protection
• EA2280BMA — 225 × 225 × 80 mm / 8.85 x 8.85 x 3.15 in | Max airflow: 16.5 m³/min (580 CFM) | Thermal Protection
• EA2280BMB — 225 × 225 × 80 mm / 8.85 x 8.85 x 3.15 in | Max airflow: 17.0 m³/min (600 CFM) | Thermal Protection
• EA2280BMB E — 225 × 225 × 80 mm / 8.85 x 8.85 x 3.15 in | Max airflow: 17.0 m³/min (600 CFM) | Thermal Protection
• EA2280BMB B — 225 × 225 × 80 mm / 8.85 x 8.85 x 3.15 in | Max airflow: 17.0 m³/min (600 CFM) | Thermal Protection
• EA1885BAB — 182 × 182 × 85 mm / 7.00 x 7.00 x 3.34 in | Max airflow: 11.0 m³/min (388 CFM) | Thermal Protection

Notes

• We reserve the right to change the data without further notice.
• Performance data are subject to ±10% tolerance.
• Models available in 115V and 230V. Capable of operating at full frequency (50 Hz or 60 Hz).
• 380V and dual-voltage models are available.

Technical characteristics

• Product family: AC axial fans optimized for harsh environment conditions.
• Typical model sizes: EA3998BNB (Ø398 × 98.3 mm), EA2880 series (280 × 280 × 80 mm), EA2280 series (225 × 225 × 80 mm), EA1885BAB (182 × 182 × 85 mm).
• Airflow range (examples): approximately 11.0 m³/min (388 CFM) up to 45.7 m³/min (1615 CFM) depending on model.
• Protection: thermal protection integrated across listed models.
• Voltage options: standard 115V and 230V; full-frequency operation (50 Hz / 60 Hz); 380V and dual-voltage variants available.
• Data tolerance: performance values subject to ±10%.
