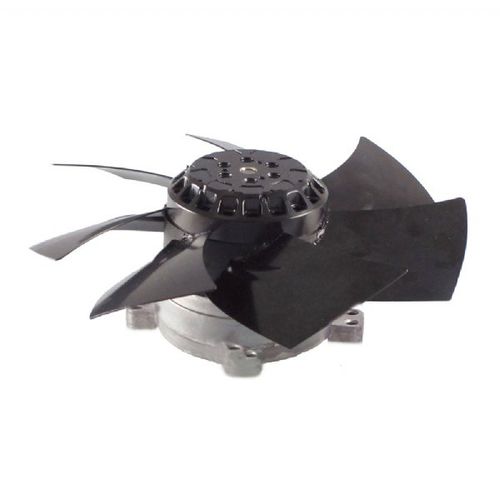

Reversible fan EA series

propellercoolingventilation

Overview
AC mechanical revolving blade fans designed without a housing, available with metal blades for industrial ventilation and cooling applications.

Specification

• EA280MR | Ø 245 x 100 mm / Ø 9.6 x 3.9 in | 32.6 ~ 18.4 m³/min / 1,300 ~ 650 CFM | Thermal Protection; Reverse Airflow
• EA280M | Ø 245 x 100 mm / Ø 9.6 x 3.9 in | 32.6 ~ 18.4 m³/min / 1,300 ~ 650 CFM | Thermal Protection; Metal Impeller
• EA254M | Ø 219 x 87 mm / Ø 8.62 x 3.42 in | 28.3 ~ 14.2 m³/min / 1,000 ~ 500 CFM | Thermal Protection; Metal Impeller
• EA205MR | Ø 189 x 64 mm / Ø 7.44 x 2.51 in | 16.1 ~ 8.9 m³/min / 570 ~ 313 CFM | Thermal Protection; Reverse Airflow
• EA205M | Ø 197 x 79 mm / Ø 7.75 x 3.11 in | 17.8 ~ 9.2 m³/min / 630 ~ 325 CFM | Thermal Protection; Metal Impeller
• EA200M | Ø 172 x 79 mm / Ø 6.77 x 3.11 in | 13.7 ~ 6.5 m³/min / 485 ~ 230 CFM | Thermal Protection; Metal Impeller

Notes

• We reserve the right to change the data without further notice.
• Data performance subject to 10% tolerance.
• Some models are available in 380V and 440V.
• All models are available in low speeds.

Technical characteristics / specifications

• Product family: AC Skeleton Fans (mechanical revolving blade fans, without frame).
• Available model series: EA280MR, EA280M, EA254M, EA205MR, EA205M, EA200M.
• Sizes range from Ø 172 x 79 mm up to Ø 245 x 100 mm (various inch equivalents provided).
• Airflow ranges approximately from 6.5 m³/min (485 CFM) up to 32.6 m³/min (1,300 CFM) depending on model and speed.
• Features across models include Thermal Protection, Metal Impeller options and Reverse Airflow on specific models.
• Some models offered in higher voltages (380V, 440V) and available in low-speed versions.
