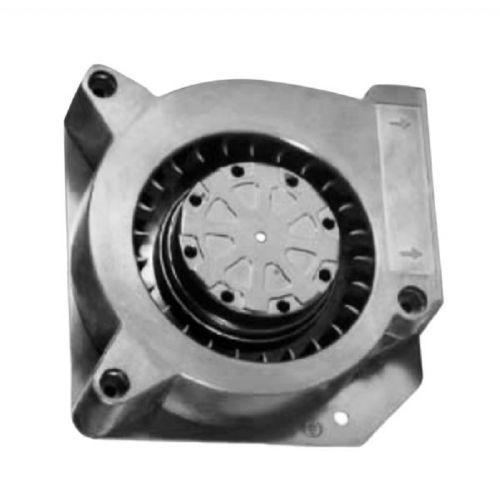

Duct fan EB series

centrifugalcoolingventilation

Overview
AC centrifugal blowers deliver airflow perpendicular to the impeller axis, producing high volumetric flow rates for ventilation and cooling in industrial and electrical applications. Available in compact and larger frames to suit panel, chassis and ducting installations.

Specifications

• EBA12030 — Size: 120.8 x 37.2 mm (4.75 x 1.46 in) — Max Airflow: 0.6 m³/min (21 CFM) — Protection: Impedance Protection
• EBA22056 — Size: 220.0 x 56.2 mm (8.66 x 2.21 in) — Max Airflow: 3.6 m³/min (126 CFM) — Protection: Thermal Protection
• EBE257175 — Size: 257 x 175 mm (10.1 x 6.88 in) — Max Airflow: 10.4 m³/min (367 CFM) — Protection: Energy Saving; Electronically Protected

Electrical & Operational Data

• Voltage options: 115 V and 230 V
• Frequency: 50 Hz or 60 Hz (capable of full-frequency operation)
• Performance tolerance: ±10%

Notes

• We reserve the right to change the data without further notice.
• Data performance subject to 10% tolerance.
• Models available in 115V and in 230V. Capable of operating full frequency (50Hz or 60Hz).

Technical specifications

• Model: EBA12030 — Size: 120.8 x 37.2 mm (4.75 x 1.46 in) — Max Airflow: 0.6 m³/min (21 CFM) — Protection: Impedance Protection
• Model: EBA22056 — Size: 220.0 x 56.2 mm (8.66 x 2.21 in) — Max Airflow: 3.6 m³/min (126 CFM) — Protection: Thermal Protection
• Model: EBE257175 — Size: 257 x 175 mm (10.1 x 6.88 in) — Max Airflow: 10.4 m³/min (367 CFM) — Protection: Energy Saving; Electronically Protected
