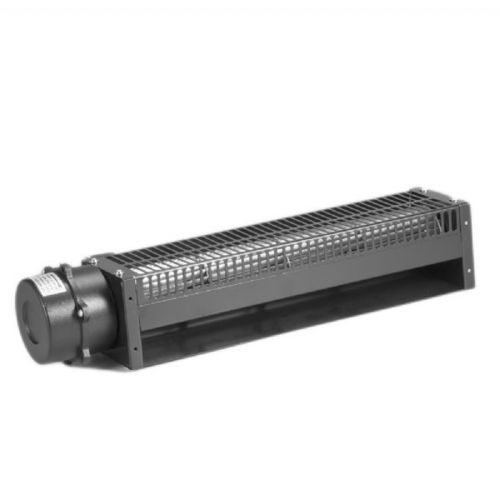

AC fan ECA series

cross-flowventilation230VAC

Product overview
AC crossflow (tangential) fans of the ECA series provide uniform airflow along the fan length for enclosure ventilation, heat dissipation and air-handling applications. Available in multiple lengths and two mounting heights; compatible with 115 V and 230 V AC mains and operable at 50 Hz or 60 Hz.

Specifications

• ECA6017 — Size: 266 x 100 x 90 mm / 10.47 x 3.93 x 3.54 in — Max airflow: 2.7 m³/min (95 CFM) — Protection: Impedance protection
• ECA6030 — Size: 402 x 100 x 90 mm / 15.82 x 3.93 x 3.54 in — Max airflow: 5.5 m³/min (195 CFM) — Protection: Thermal protection
• ECA6036 — Size: 462 x 100 x 90 mm / 18.18 x 3.93 x 3.54 in — Max airflow: 6.0 m³/min (212 CFM) — Protection: Thermal protection
• ECA9029 — Size: 420 x 150 x 130 mm / 16.53 x 5.90 x 5.11 in — Max airflow: 5.0 m³/min (177 CFM) — Protection: Thermal protection
• ECA9439 — Size: 510 x 150 x 130 mm / 20.07 x 5.90 x 5.11 in — Max airflow: 9.0 m³/min (318 CFM) — Protection: Thermal protection
• ECA9446 — Size: 570 x 150 x 130 mm / 22.44 x 5.90 x 5.11 in — Max airflow: 10.0 m³/min (354 CFM) — Protection: Thermal protection
• ECA9060 — Size: 740 x 150 x 130 mm / 29.13 x 5.90 x 5.11 in — Max airflow: 15.5 m³/min (550 CFM) — Protection: Thermal protection

Notes

• We reserve the right to change data without notice.
• Performance data subject to ±10% tolerance.
• Models available in 115 V and 230 V; capable of operating at 50 Hz or 60 Hz.

Technical specifications

• ECA6017: Size 266 x 100 x 90 mm (10.47 x 3.93 x 3.54 in); Max airflow 2.7 m³/min (95 CFM); Protection: Impedance protection.
• ECA6030: Size 402 x 100 x 90 mm (15.82 x 3.93 x 3.54 in); Max airflow 5.5 m³/min (195 CFM); Protection: Thermal protection.
• ECA6036: Size 462 x 100 x 90 mm (18.18 x 3.93 x 3.54 in); Max airflow 6.0 m³/min (212 CFM); Protection: Thermal protection.
• ECA9029: Size 420 x 150 x 130 mm (16.53 x 5.90 x 5.11 in); Max airflow 5.0 m³/min (177 CFM); Protection: Thermal protection.
• ECA9439: Size 510 x 150 x 130 mm (20.07 x 5.90 x 5.11 in); Max airflow 9.0 m³/min (318 CFM); Protection: Thermal protection.
• ECA9446: Size 570 x 150 x 130 mm (22.44 x 5.90 x 5.11 in); Max airflow 10.0 m³/min (354 CFM); Protection: Thermal protection.
• ECA9060: Size 740 x 150 x 130 mm (29.13 x 5.90 x 5.11 in); Max airflow 15.5 m³/min (550 CFM); Protection: Thermal protection.
