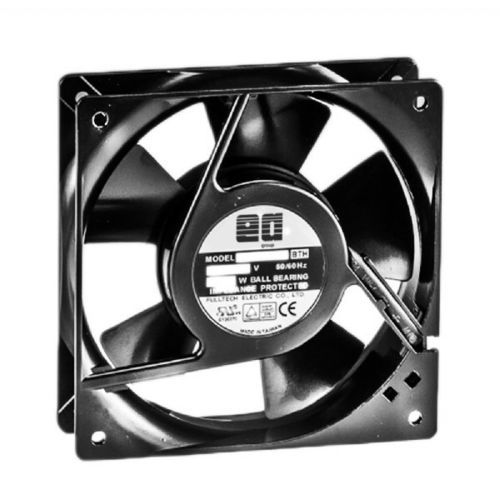

AC fan EA series

high-flowaxialcooling

Product description
AC tube axial fans with mechanical revolving blades. Available in a wide range of designs, sizes and configurations to suit cooling and ventilation applications in industrial and electronic equipment.

Specification

• EA25107C | Ø 254 × 107 / Ø 10 x 4.17 | 24.0 m³/min / 850 CFM | Thermal Protection
• EA2589CM | Ø 254 × 89 / Ø 10 x 3.5 | 23.8 m³/min / 841 CFM | Thermal Protection; Metal Impeller
• EA2589C | Ø 254 × 89 / Ø 10 x 3.5 | 15.5 m³/min / 550 CFM | Thermal Protection
• EA2589CA | Ø 254 × 89 / Ø 10 x 3.5 | 19.3 m³/min / 680 CFM | Thermal Protection
• EA2589CB | Ø 254 × 89 / Ø 10 x 3.5 | 23.0 m³/min / 812 CFM | Thermal Protection
• EA2260 | Ø 223 × 60 / Ø 8.70 x 2.34 | 11.0 m³/min / 400 CFM | Impedance Protection
• EA2090C | 205 x 205 x 90 / 8.00 x 8.00 x 3.51 | 19.3 m³/min / 680 CFM | Thermal Protection
• EA2070C | 205 x 205 x 72 / 8.07 x 8.07 x 2.83 | 20.1 m³/min / 710 CFM | Thermal Protection
• EA1890C | 180 x 180 x 90 / 7.02 x 7.02 x 3.51 | 13.0 m³/min / 460 CFM | Thermal Protection
• EA1662C | 160 x 160 x 62 / 6.24 x 6.24 x 2.42 | 7.5 m³/min / 265 CFM | Thermal Protection
• EA1751 | Ø 172 x 51 / Ø 6.7 x 2.0 | 5.5 m³/min / 195 CFM | Impedance Protection
• EA1751C | Ø 172 x 51 / Ø 6.7 x 2.0 | 6.4~3.0 m³/min / 226~106 CFM | Thermal Protection
• EA1551 | 172 x 150 x 51 / 6.70 x 5.90 x 2.00 | 5.5 m³/min / 195 CFM | Impedance Protection
• EA1551C | 172 x 150 x 51 / 6.70 x 5.90 x 2.00 | 6.4~3.0 m³/min / 226~106 CFM | Thermal Protection
• EA1555C | 172 x 150 x 55 / 6.70 x 5.90 x 2.16 | 8.3 m³/min / 293 CFM | Thermal Protection
• EA1555CR | 172 x 150 x 55 / 6.70 x 5.90 x 2.16 | 6.8 m³/min / 241 CFM | Thermal Protection; Reverse Airflow
• EA1555CM | 172 x 150 x 55 / 6.70 x 5.90 x 2.16 | 6.5 m³/min / 230 CFM | Thermal Protection; Metal Impeller
• EA1555CMR | 172 x 150 x 55 / 6.70 x 5.90 x 2.16 | 7.2 m³/min / 255 CFM | Thermal Protection; Metal Impeller; Reverse Airflow
• EA1538 | 172 x 150 x 38 / 6.70 x 5.90 x 1.50 | 5.6 m³/min / 198 CFM | Impedance Protection
• EA1538C | 172 x 150 x 38 / 6.70 x 5.90 x 1.50 | 6.0~2.9 m³/min / 212~103 CFM | Thermal Protection
• EA1338 | 127 x 127 x 38 / 5.00 x 5.00 x 1.50 | 3.4 m³/min / 120 CFM | Impedance Protection
• EA1238 | 120 x 120 x 38 / 4.70 x 4.70 x 1.50 | 3.0~2.6~2.3 m³/min / 106~92~82 CFM | Impedance Protection
• EA1238R | 120 x 120 x 38 / 4.70 x 4.70 x 1.50 | 2.8~2.4~2.1 m³/min / 99~85~75 CFM | Impedance Protection; Reverse Airflow
• EA1238M | 120 x 120 x 38 / 4.70 x 4.70 x 1.50 | 2.9 m³/min / 103 CFM | Impedance Protection; Metal Impeller
• EA1238MR | 120 x 120 x 38 / 4.70 x 4.70 x 1.50 | 3 m³/min / 106 CFM | Impedance Protection; Metal Impeller; Reverse Airflow
• EA1225 | 120 x 120 x 25 / 4.70 x 4.70 x 1.00 | 2.1~1.5 m³/min / 75~53 CFM | Impedance Protection
• EA1225R | 120 x 120 x 25 / 4.70 x 4.70 x 1.00 | 2.0 m³/min / 70 CFM | Impedance Protection; Reverse Airflow
• EA9238 | 92 x 92 x 38 / 3.62 x 3.62 x 1.50 | 1.3 m³/min / 46 CFM | Impedance Protection
• EA9238M | 92 x 92 x 38 / 3.62 x 3.62 x 1.50 | 1.45 m³/min / 51 CFM | Impedance Protection; Metal Impeller
• EA9225 | 92 x 92 x 25 / 3.62 x 3.62 x 1.00 | 1.13~0.88 m³/min / 40~31 CFM | Impedance Protection
• EA8038M | 80 x 80 x 38 / 3.15 x 3.15 x 1.50 | 1 m³/min / 34 CFM | Impedance Protection; Metal Impeller
• EA8038 | 80 x 80 x 38 / 3.15 x 3.15 x 1.50 | 0.83~0.62 m³/min / 30~25 CFM | Impedance Protection
• EA8025 | 80 x 80 x 25 / 3.15 x 3.15 x 1.00 | 0.67~0.50 m³/min / 23~18 CFM | Impedance Protection
• EA6030 | 60 x 60 x 30 / 2.36 x 2.36 x 1.20 | 0.29 m³/min / 10.24 CFM | Impedance Protection

Notes

• We reserve the right to change the data without further notice.
• Data performance subjected to 10% tolerance.
• Models available in 115V and in 230V. Capable of operating full frequency (50Hz or 60Hz).
• 380V and Dual voltage models available upon request.

Technical characteristics

• Product family: AC Tube Axial Fans (EA series).
• Available sizes: from 60 x 60 x 30 mm to Ø 254 × 107 mm (various thicknesses/heights).
• Airflow range: approx. 0.29 m³/min (10.24 CFM) to 24.0 m³/min (850 CFM), depending on model.
• Protection types: Thermal Protection and Impedance Protection; selected models feature Reverse Airflow.
• Impeller options: standard (plastic) and Metal Impeller for specific models.
• Voltage options: standard in 115V and 230V; capable of 50Hz/60Hz operation. 380V and dual-voltage units available on request.
• Tolerance: specifications subject to ±10% performance tolerance.
