Coating thickness gauge GalvanoTest 3000

metalbenchtopcoulometric

Product overview

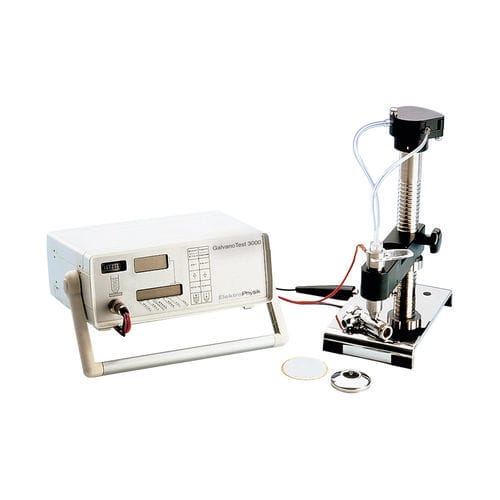

GalvanoTest is a coulometric (anodic dissolution) coating thickness gauge for measuring galvanic coatings such as chrome, nickel, cadmium, copper, brass, silver, gold, tin and zinc on metallic and non‑metallic substrates. The device determines coating thickness from the measured current and time during controlled electrolytic dissolution.

Product information
The GalvanoTest is available as the GalvanoTest 3000: a model with a circulation pump and large electrolyte volume for fast serial measurements and improved handling of very small parts and gold layers. Model 2000 is discontinued. The instrument provides directly adjustable calibration factors and settings tailored to metal type and measuring surface.

Application

• Destructive measurement of galvanic coatings (e.g. Cr, Ni, Cd, Cu, brass, Ag, Au, Sn, Zn) on metal and non‑metal substrates.

Measuring principles

• Coulometric/anodic dissolution according to Faraday’s law: an electrolyte and controlled current dissolve the metal coating; charge vs time yields thickness.

Features

• 8 deplating speeds approx. 0.3–40 µm/min
• Measuring surface options from 0.25 to 8 mm² (electrolyte cup optional up to ~16 mm²)
• Measuring range 0.05–75 µm
• Accessories for wire measurement (cathode cup) and very small parts
• Variable shut‑down sensitivity for alloy zones
• Directly adjustable calibration and 10 preset metal types + additional special metals

Delivery scope

• GalvanoTest device
• Standard stand with measuring cell and pulsator nozzle (GalvanoTest 2000)
• Measuring stand with integrated circulation pump and measuring cell type 1 (GalvanoTest 3000)
• Connection cable device/stand, ring gaskets, masks
• Electrolytes (on request), pipettes, waste bottle, spray bottle
• Rubber pencil, absorbent paper, operating manual

Technical specifications

• Coating/substrate combinations: >70 standard combinations; flat and curved surfaces; small components and wires; 10 preset metals (Cr, Ni, Cu, brass, Zn, Ag, Sn, Pb, Cd, Au) plus 8 special coatings
• Measuring range: 0.05…75 μm
• Measuring cell: with circulation pump (3000)
• Measuring surface: gasket 4 mm²; masks 1 mm² and 0.25 mm²; optional electrolyte cup 0.25–~16 mm²
• Adjustable settings: up to 8 deplating speeds (approx. 0.3–40 μm/min), calibration factors adjustable, variable shut‑down speed
• Data storage: 18 application memories, up to 2000 readings; non‑volatile memory for calibrations and statistics
• Statistical evaluation: mean, standard deviation, coefficient of variation, count, min/max; immediate or delayed display/print
• Interfaces: MiniPrint, RS232 C, analog output; electrolyte saturation alarm
• Measuring uncertainty: approx. 5% of reading on 8 mm² after calibration
• Power supply: 110/220 V 50–60 Hz, 10 W
• Dimensions & weight: gauge ≈260×250×100 mm, ≈2.5 kg; stand with pump ≈3.0 kg
• Additional functions: printable voltage curve for interface detection; language menu (DE/FR/EN); metric or mil units; illuminated voltmeter
