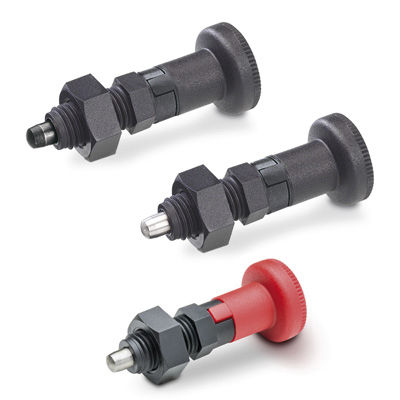

Stainless steel indexing plunger PMT. 101

technopolymer

THREADED BODY Glass-fibre reinforced polyamide based (PA) SUPER-tecnopolymer. PLUNGER Black-oxide hardened steel or AISI 303 stainless steel. Suggested tolerance for matching hole = H7. KNOB High-resilience polyamide based (PA) technopolymer, black colour or RAL 3000 red colour (C6), matte finish. SPRING AISI 302 stainless steel. LOCKING NUT (NTT) Glass-fibre reinforced polyamide based (PA) SUPER-tecnopolymer. Available also as accessory sold separately (see table NTT). STANDARD EXECUTIONS - PMT.101-A: black-oxide steel plunger, without locking nut. - PMT.101-AK: black-oxide steel plunger, with locking nut (supplied not assembled). - PMT.101-SST-A: AISI 303 stainless steel plunger, without locking nut, not magnetic. - PMT.101-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic. FEATURES AND APPLICATIONS - Lightness and high mechanical resistance of the product. - The SUPER-technopolymer threaded body of the plunger offers a low friction factor to the plunger stroke; no lubricating maintenance is required. - Anticorrosive material: suitable even in the presence of liquid or humidity (PMT.101-SST). - Resistant to several cleaning cycles with solvents and other chemical agents, for this reason they are suitable for applications as in the pharmaceutical or food industry. - The stop toothing (for the rest position) made out of SUPERtechnopolymer: no risk of seizure or wear.
