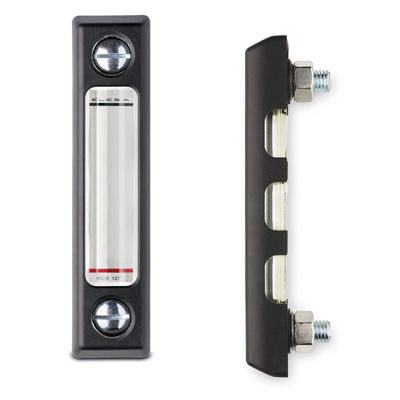

Liquid level gauge HCX-PT
bypassstainless steel

liquid level gauge
liquid level gauge
Add to favorites
Compare this product


Characteristics

Fluid
liquid
Technology
bypass
Other characteristics
stainless steel

Description

INDICATOR BODY Transparent polyamide based (PA-T) technopolymer. Highly resistant to shocks, solvents, oils with additives, aliphatic and aromatic hydrocarbons, petrol, naphtha, phosphoric esters. Avoid contact with alcohol or detergents containing alcohol. PROTECTION FRAME Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish. Supplied assembled, removable by a screwdriver. SCREWS, NUTS AND WASHERS - Zinc-plated steel. (HCX-PT). - AISI 303 stainless steel screws, AISI 304 stainless steel nuts and washers. (HCX-PT-SST). - Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer screws, AISI 304 stainless steel nuts and washers. (HCX-PT-VT). PACKING RINGS - NBR synthetic rubber O-Ring. (HCX-PT and HCX-PT-VT). - FKM type VITON®*O-Ring. (HCX-PT-SST). Suggested roughness of the packing ring application surface Ra = 3 µm. CONTRAST SCREEN White lacquered aluminium. The housing, in the appropriate external rear slot, guarantees the best protection from direct contact with fluid. It can be taken out from the inclined side, before assembly to allow the insertion of level lines or words.
