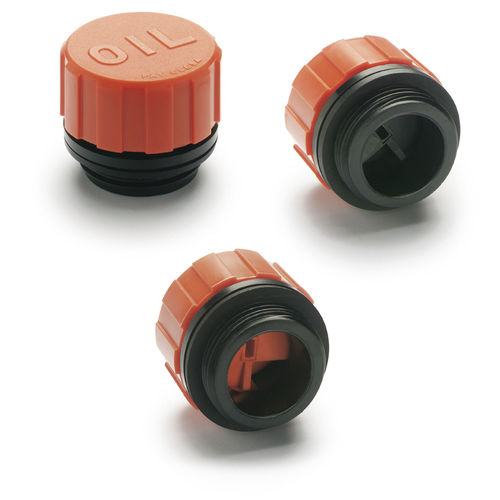

Round plug SFP.

threadedpolyamideNBR

MATERIAL Polyamide based (PA) technopolymer. - Cover: RAL 2004 orange, semi-matte finish, marked "OIL". - Threaded connector: black colour, semi-matte finish. PACKING RING NBR synthetic rubber. SPLASH GUARD Technopolymer. STANDARD EXECUTIONS - SFP.: without air filter (black splash guard). - SFP+F: with "tech-foam" air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard) or with "tech-fil" air filter in zinc-plated steel wire (orange splash guard). - SFP.70-BA+F: with "tech-foam" air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard). Zinc-plated steel sheet bayonet. Chrome-plated steel safety chain. MAXIMUM CONTINUOUS WORKING TEMPERATURE 100°C. FEATURES AND APPLICATIONS SFP. breather caps come complete with splash guard device (ELESA original design) that prevents oil loss and are particularly suitable for use where oil is violently agitated and could be splashed against breather cap. TECHNICAL DATA Air flow rate for each model can be determined from the graph calculating the difference between the pressure inside and outside the reservoir. SPECIAL EXECUTIONS ON REQUEST - Cover, RAL 2004 orange, without "OIL" mark. - Black cover with or without "OIL" mark. - Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20) for the codes marked with # in the table.
