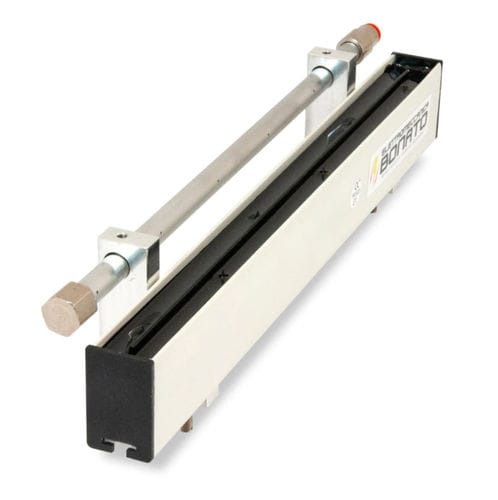

Antistatic bar IDB-S

The IDB-S antistatic bar is coupled with a perforated tube at each emitter to deliver ionized air over a greater distance. The emitters are resistively coupled to the high voltage, ensuring no risk to the operator in case of accidental contact and providing higher bar efficiency. This antistatic bar has a slot where M5 screws are inserted for fastening, allowing it to be fixed wherever desired along the entire length of the bar. IDB-S antistatic bars are used in various applications, particularly in the plastics, printing, painting, wood, and automotive industries, etc. Power supply - Integrated 12-24 Vdc, maximum current 0.5 A Working distance - 100 – 1500 mm Lengths - from 100 mm to 6000 mm Weight - 1,4 kg / m Operating voltage - 6500 VAC Emitters - Titanium Operating temperature - 0° C – 70° C Pressure - Max 8 bar, adjustable
