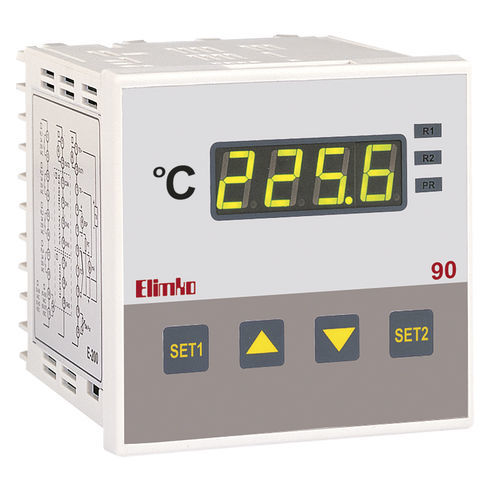

Digital indicator controller E-90 series

temperatureuniversalpressure

E-90 Series controllers are designed using new generation micro-controllers for on/off and PID control. The unit has dimensions of 96x96 mm, conforming IEC 668. E-90 Series have a 4 digits LED display range between -1999 and +9999, configurable universal inputs (T/C, R/T, mA) with 16 bit resolution, low calibration drifts with enviromental conditions. E-90 Series controllers have easy programing facilities to provide on/off and PID forms are used in every field of industry for measurement and control of temperature, pressure, level, current, voltage, resistance and other process parameters in industries such as iron & steel, cement, plastic, chemistry, metallurgy, petrochemical plants, refineries, ceramic, glass and others. Accuracy Class 0.5 Display Resolution 1/9999 Display 1x4 Digit LED (14 mm) A/D Conversion 16 bit Reading Speed 2 readings / second Input Resistance T/C, mV ≥ 1 MΩ mA, ≤ 51 Ω Noise Suppression 120 dB 50 Hz
