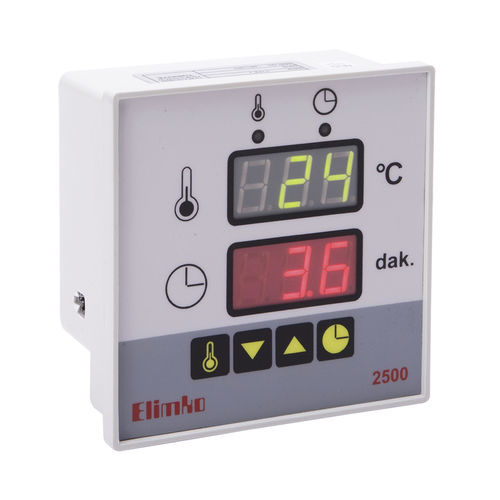

Temperature indicator controller E-2500 series

3-digitLEDwith relay output

E-2500 series temperature and timing controllers are designed using new generation microcontrollers. Unit dimensions ar 96x96 mm, conforming to IEC 668. It has a 2x3 digit Led display. Uper display is for temperature, lower display is for timer. Configurable temperature range is 400 °C accordance to J type Fe-Const thermocouple. Time set point is also configurable in between 0.1 ile 99.9 minute. Accuracy Class 0.5 Display Resolution 1/999 A/D Conversion 16 Bit Reading Speed 2 readings/second Input Resistance T/C ≥ I M Ω Noise Suppression 120 dB 50 Hz Operating Temperature -10 ... 55°C Temperature Comp. 0 ... 50°C Time Programming Range 0-99.9 minutes
