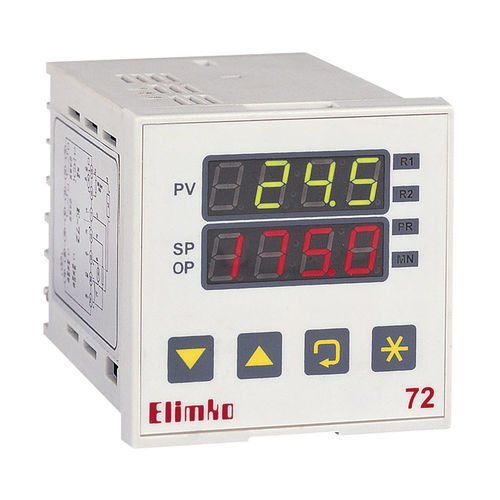

Digital indicator controller E-72 series

temperatureuniversalpressure

E-72 Series controllers are designed using new generation micro-controllers for on/off and PID control. Unit dimensions are 72x72 mm, conforming to IEC 668. The E-72 Series has a 2x4 digits LED display range from –1999 to +9999 and configurable universal inputs (T/C, R/T, mV, mA) with 16 bit resolution, low calibration drifts with environmental conditions. E-72 Series controllers have easy programming facilities to provide on/off and PID forms and are used in every field of the industry for measurement and control of temperature, pressure, level, current, voltage, resistance and other process parameters in the industries such as iron & steel, cement, plastic, chemistry, metallurgy, petrochemical plants, refineries, ceramic, glass and others. Accuracy Class 0.5 Display Resolution 1/9999 Display 2x4 Digit LED (10 mm) A/D Conversion 16 bit D/A Conversion 12 bit Reading Speed 2 readings / second Input Resistance T/C, mV ≥ 1 MΩ mA, ≤ 51 Ω
