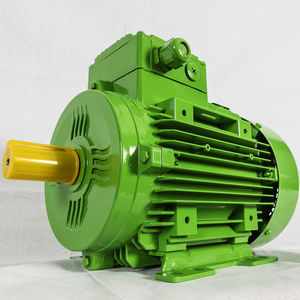

Compact motor 2EC071M4Dinduction3-phase400 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, 3-phase
- Voltage
- 400 V, 380 V
- Configuration
- aluminium, squirrel cage, compact
- Protection class
- IP55
- Efficiency classes
- IE2
- Number of poles
- 4-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency
- Power
0.55 kW
(0.75 hp)- Intensity
1.45 A, 2.51 A
- Torque
3.74 Nm
(2.758482 ft.lb)- Rotational speed
1,405 rpm
(8,827.8754 rad.min-1)- Diameter
137 mm
(5.39 in)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 071
Frequency 50 Hz
Moment of Inertia 0.00093 kg.m²
Load 4/4 3/4 1/2
Efficiency 77.1 % 77.1 % 77.1 %
Power Factor 0.72
Insulation Class F (155°C)
Temperature Rise F (105°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 46 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor
Direction of Rotation Clockwise
Motor Weight 8.00 kg
Bearings DS (6202 ZZ) NS (6202 ZZ)
Catalogs
No catalogs are available for this product.
See all of ELK Motor‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):

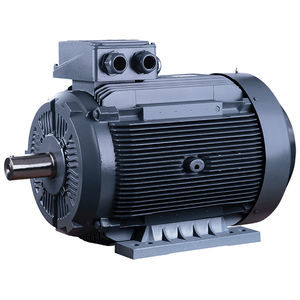

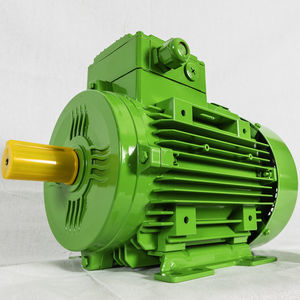

Other ELK Motor products
