Compact motor 3EC132M series
induction3-phase400 V

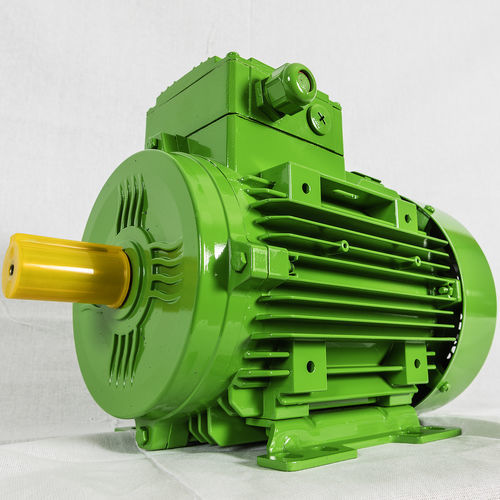

Compact motor - 3EC132M series - ELK Motor - induction / 3-phase / 400 V
Compact motor - 3EC132M series - ELK Motor - induction / 3-phase / 400 V
Compact motor - 3EC132M series - ELK Motor - induction / 3-phase / 400 V - image - 2
Compact motor - 3EC132M series - ELK Motor - induction / 3-phase / 400 V - image - 3
Compact motor - 3EC132M series - ELK Motor - induction / 3-phase / 400 V - image - 4
Compact motor - 3EC132M series - ELK Motor - induction / 3-phase / 400 V - image - 5
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 690 V
Configuration
aluminium, squirrel cage, compact
Protection class
IP55
Efficiency classes
IE3
Number of poles
4-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency
Power

9 kW, 11 kW
(12.24 hp, 14.96 hp)

Intensity

10.3 A, 11.4 A, 17.9 A, 19.8 A

Torque

35.7 Nm, 58.9 Nm
(26.330969 ft.lb, 43.442411 ft.lb)

Rotational speed

1,460 rpm, 2,940 rpm
(9,173.4505 rad.min-1, 18,472.5648 rad.min-1)

Diameter

257 mm
(10.12 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 132 Frequency 50 Hz Moment of Inertia 0.02290 kg.m² Load 4/4 3/4 1/2 Efficiency 91.2 % 91.2 % 91.2 % Power Factor 0.88 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 69 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor Direction of Rotation Clockwise Motor Weight 56.0 kg Bearings DS (6208 ZZ) NS (6208 ZZ)
